Single Blade Labyrinth Type Drip Irrigation Tape Machine Manufacturer for Professional Production

Share to:

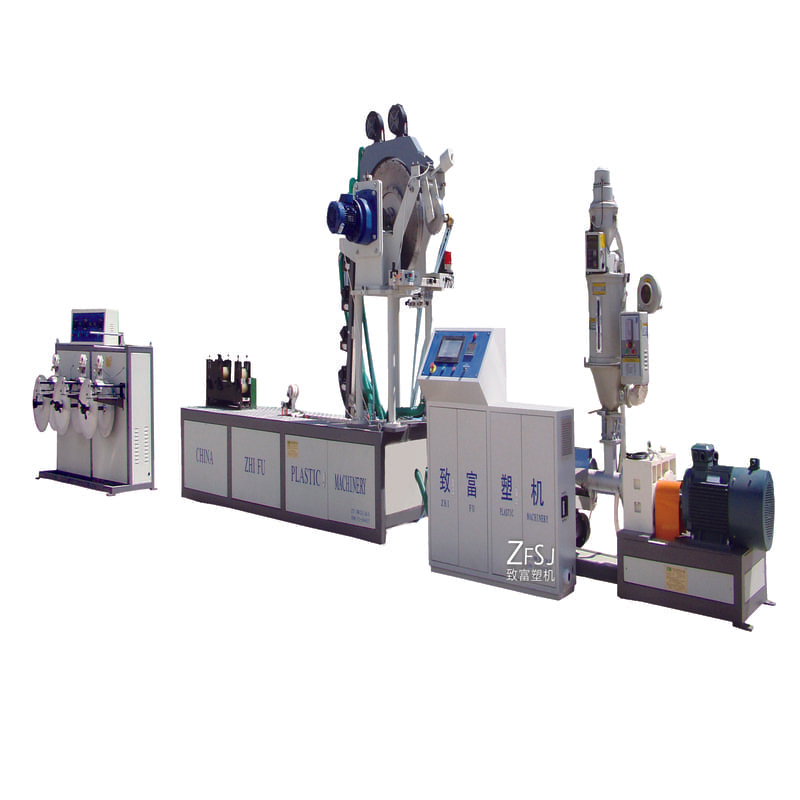

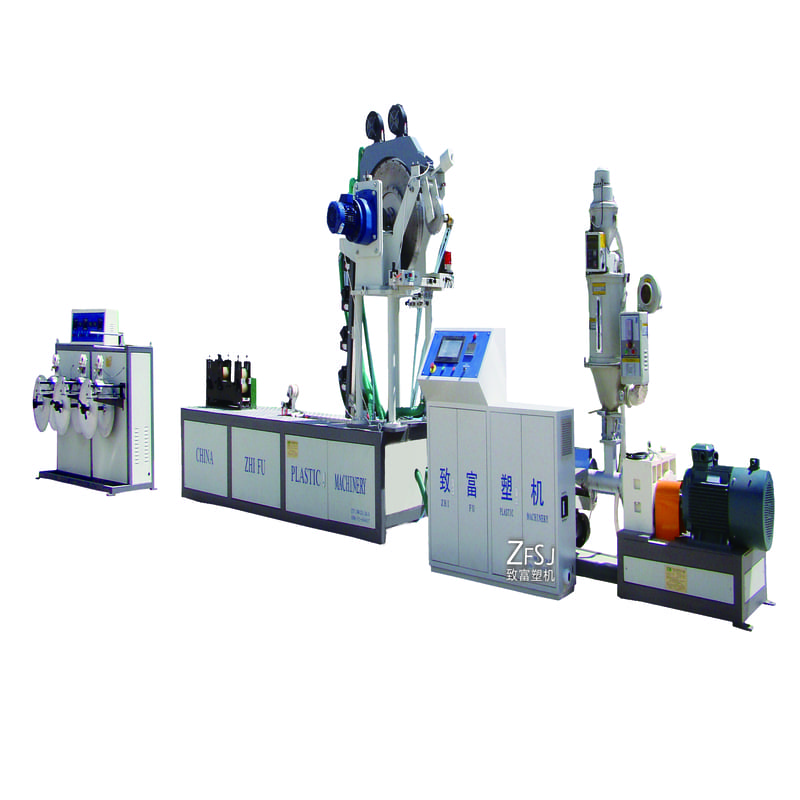

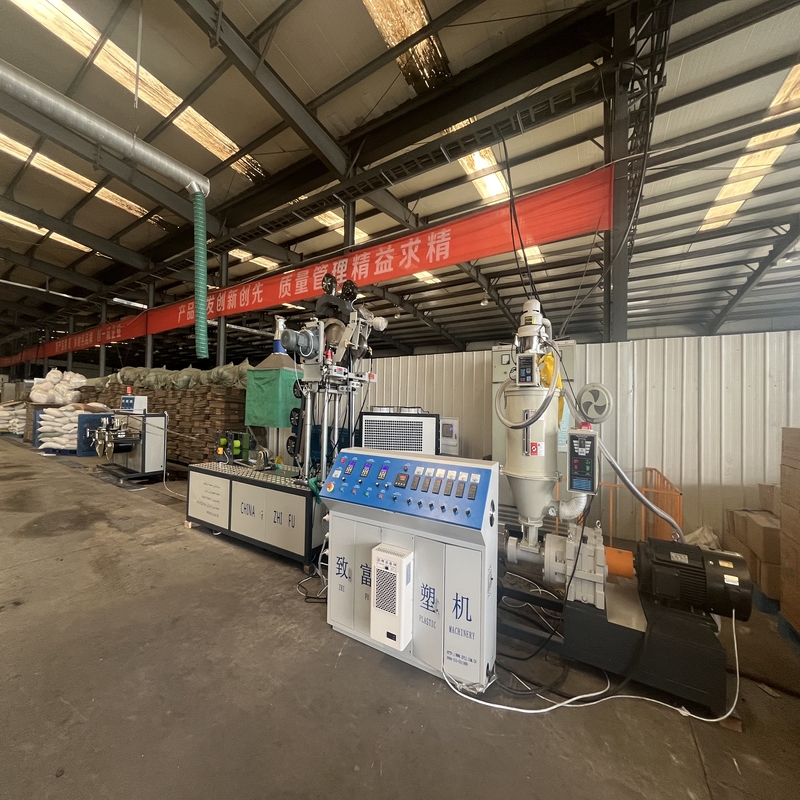

Single Blade Labyrinth Type Drip Irrigation Tape Machine Manufacturer for Professional Production

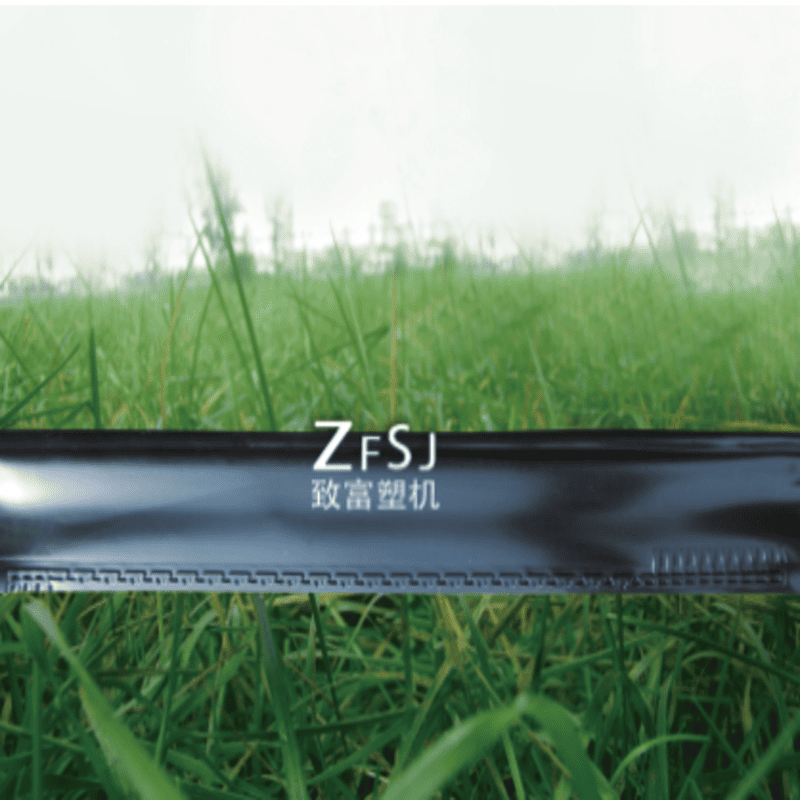

The drip irrigation belt products manufactured by this equipment are widely used for farmland and greenhouse, especially suitable for arid areas. It is a patent product for water and energy saving irrigation.

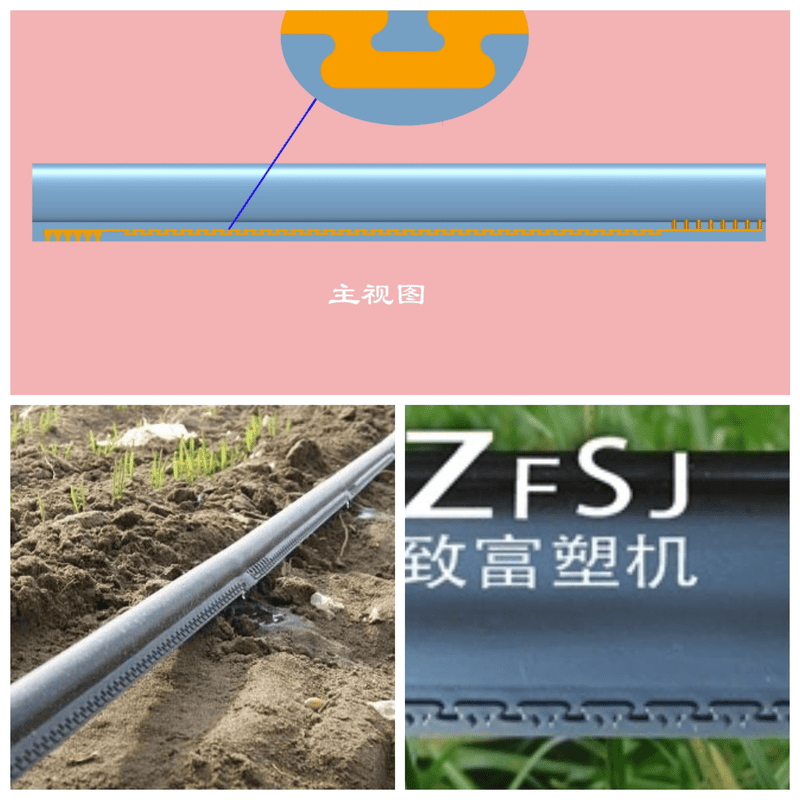

The water saving apparatus of the labyrinth drip irrigation belt has the function of turbulence floe regime and pressure compensation. The labyrinth flow passage molding is formed by vacuum one-time integrative hot pressure. With high manufacturing precision and multiple outlets, it can prevent blocking effectively and provide water evenly.

Specification:	SINGLE BLADE LABYRINTH TYPE DRIP IRRIGATION TAPE MACHINE
Color:	gray
Availability:

Quantity:



Inquire Add to Basket

Model:
SJDY-65
Brand:
ZFSJ

PRODUCT PARAMETERS

Item	Specification
Max production speed	100 m/min
Screw diameter	65 mm
L/D ratio	32:01:00
Max extruding capacity	80 kg/h
Main motor	22 kW
Tape diameter	16 mm
Tape thickness	0.20 mm
Flow rate	1–4.5 L/h
Installation power	65 kW
Machine size (L×W×H)	13.5 × 1.75 × 2.6 m

PRODUCT ADVANTAGES

High-Quality Extrusion Components：The screw and barrel of the extruder are made of nitrogen-treated superior alloy steel 38CrMoAlA. The screw surface is additionally sprayed with alloy to increase service life, ensuring durable and stable operation.	Excellent Plasticizing Performance：The screw adopts a new structure design, which is especially suitable for processing PE regenerated materials, providing excellent plasticizing effects and improving production efficiency.

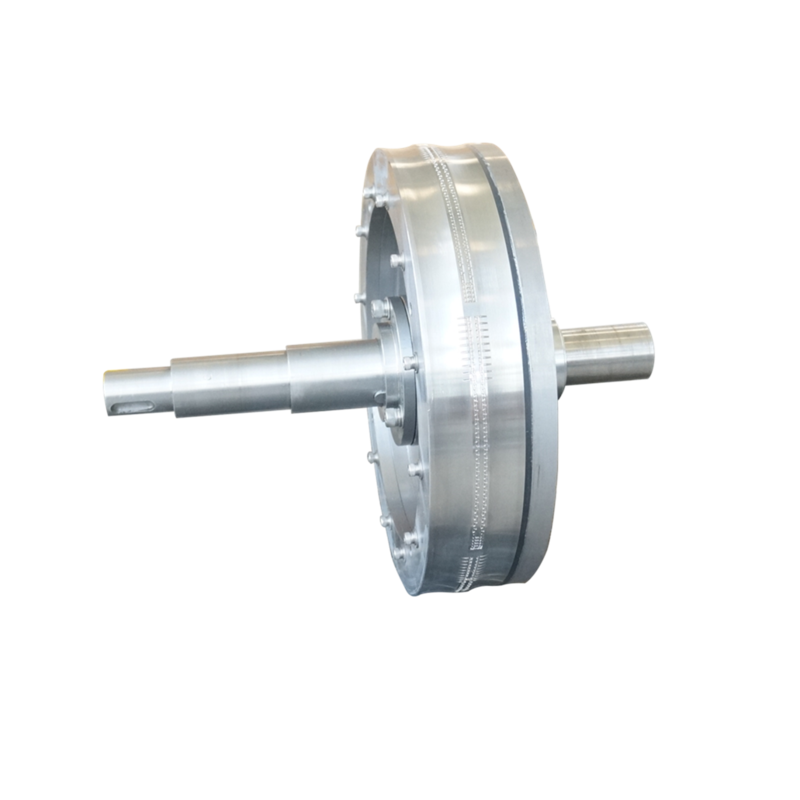

Advanced Molding & Thickness Control Technology：The molding die head of the drip irrigation belt membrane tube adopts a hot runner center feeding system with helical material flow. The membrane tube uses a cast aluminum air ring for air pre-cooling and a far-infrared diameter measuring device to maintain uniform membrane tube thickness.	Precision Shaping & Stable Flow Rate Control：The machine adopts domestic advanced molding technology and patented shaping wheels, ensuring even and stable inlet and outlet spacing of the drip irrigation belt labyrinth. This guarantees uniform dripping quantity and accurate flow rate.

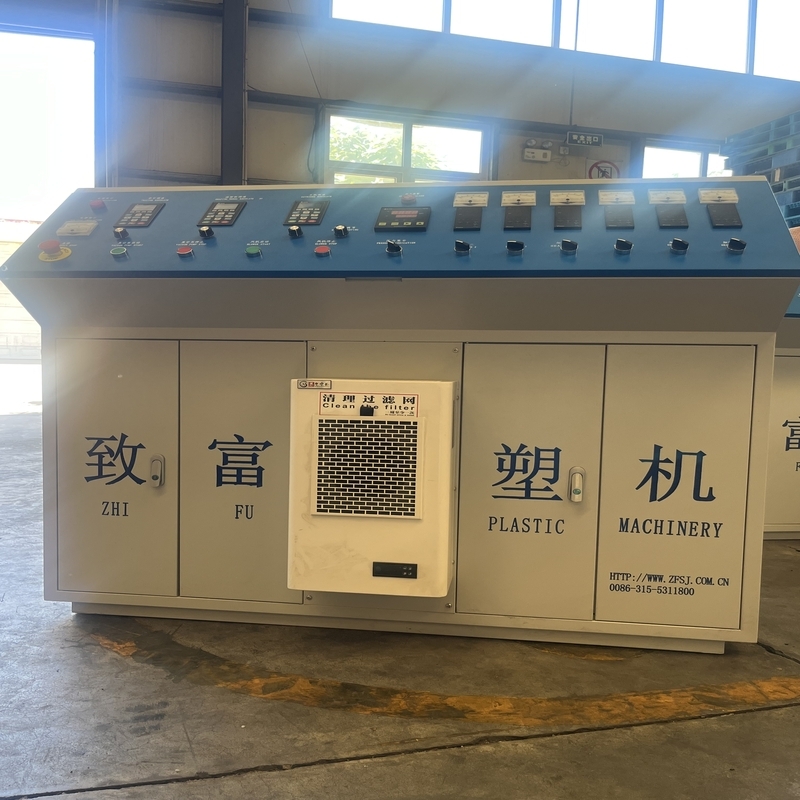

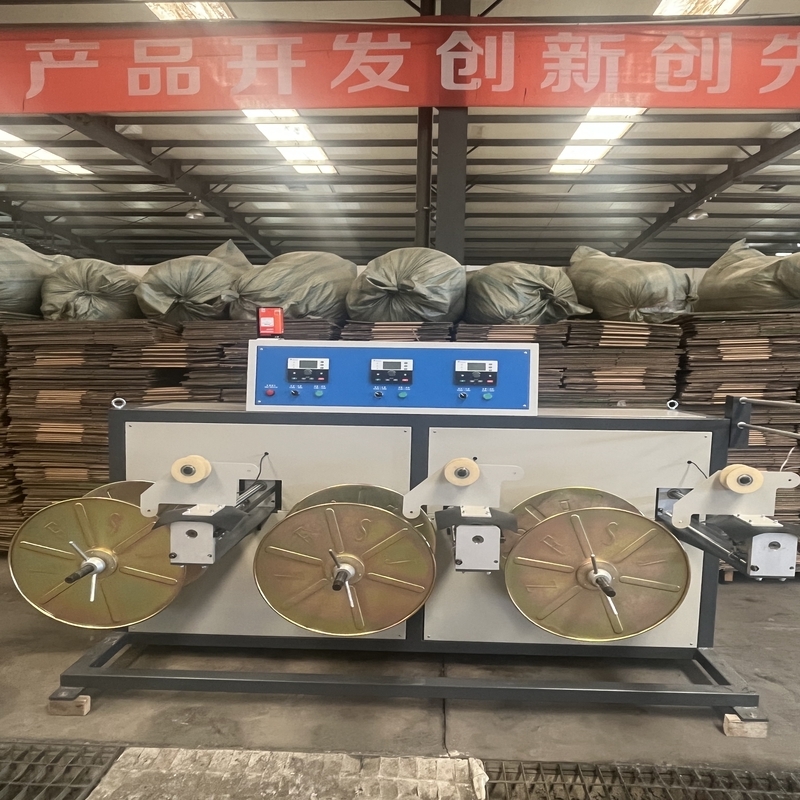

Stable Traction & Flexible Winding System：The machine uses coupling hauling, and the entire traction process adopts frequency control to ensure stable production. The three-station winder provides flexible operation and is equipped with an electric length counting device for accurate measurement.	Convenient PLC Control System：The whole machine can be equipped with a PLC control system, making operation more convenient and allowing efficient control of the production process.

APPLICATION SCENARIOS

Drip Irrigation For Tall Crops

Drip Irrigation For Orchards & Vineyards

Drip Irrigation For Greenhouse Peppers

Precision Irrigation For Greenhouse Strawberries

Drip Irrigation For Landscape Gardening

Drip Irrigation For Grain Fields

Irrigation Tape Laying In Fields

Drip Irrigation For Greenhouse Seedlings

GLOBAL DELIVERY

Wooden Case Container Loading

Wooden Case Lifting Into Container

Multi-Container Loading Site

Comprehensive Pre-Shipment Inspection：All equipment is thoroughly inspected, tested, and cleaned before shipment to ensure reliable performance.

Secure Protective Packaging：Key components are wrapped with moisture-proof materials and reinforced packaging to prevent damage during transportation.

Professional Container Loading：The production line is loaded into export-standard containers and securely fastened to avoid movement during long-distance shipping.

Customized Protection Solutions：Wooden protection structures and tailored packaging methods are applied to safeguard critical machine parts.

Worldwide Delivery Service：With extensive export experience, we provide efficient and reliable global shipping to ensure on-time delivery.

Complete Shipping Documentation：Loading photos, packing lists, and shipping documents are provided for full shipment tracking and transparency.

ABOUT ZHIFU PLASTIC MACHINERY

Our factory was established in 1986 and is located in Tangshan, Hebei Province, China, only 110 kilometers away from Beijing. We have over 40 years of professional experience in manufacturing various drip irrigation tape machinery, dripper molds, and various irrigation products. Our products exports to more than 50 countries, with an annual export of over 300 machines and more than 500 containers of irrigation products.

The factory has more than 200 employees, equipped with its own laboratory and professional R&D technical team with more than 35 independent innovation patents, has passed ISO and CE certifications. We have professional after sales service team which is consist of 20 technicians who can provide high efficiency training. Also we have one international market sales team who has been engaged in the international market more than 10 years and provide Turn-Key Project info.
