Inline Round Dripper Irrigation Pipe Machine Manufacturer for Agricultural Irrigation Production

Share to:

Inline Round Dripper Irrigation Pipe Machine Manufacturer for Agricultural Irrigation Production

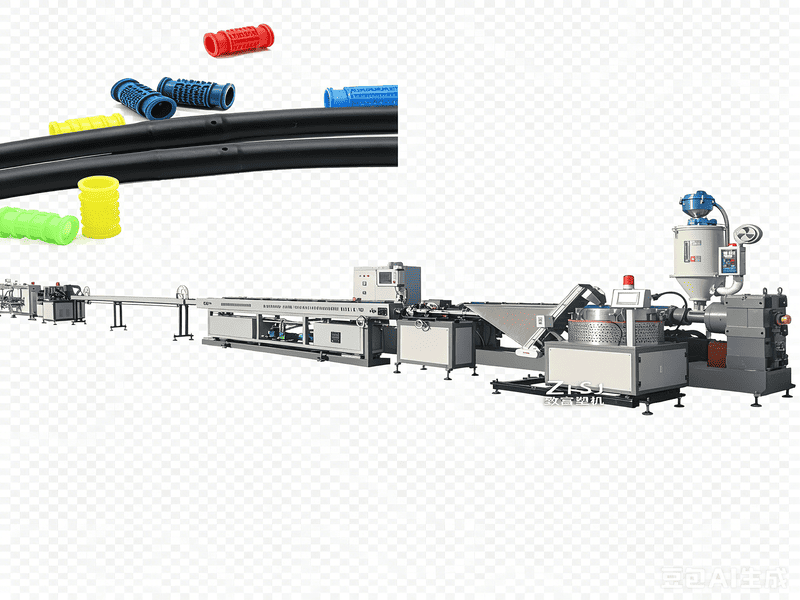

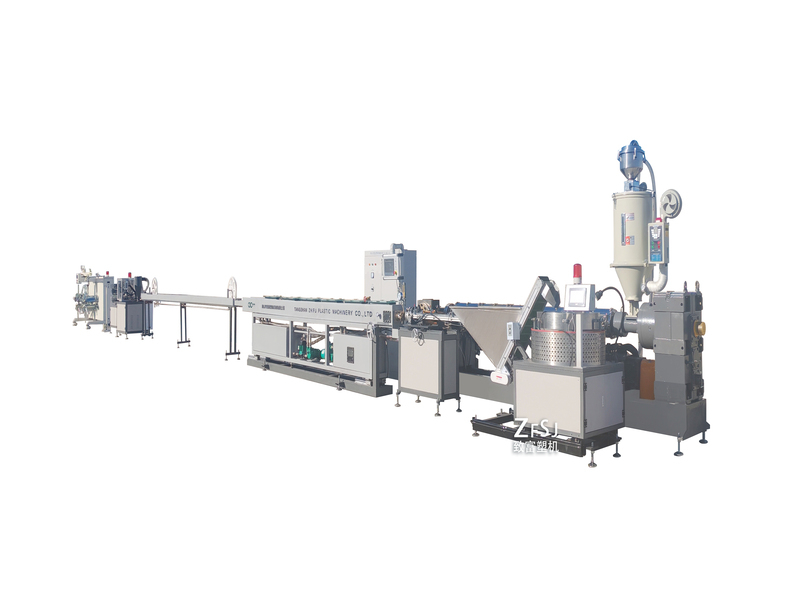

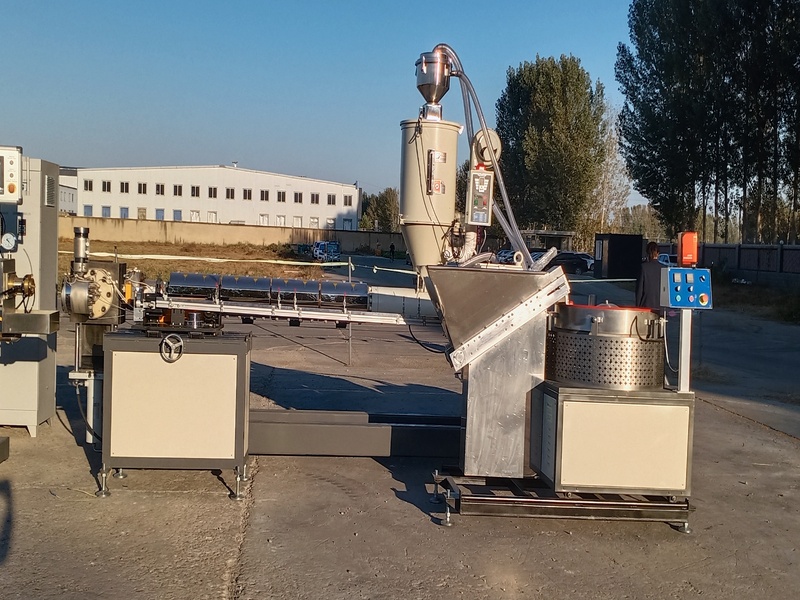

The inline round dripper irrigation pipe production line is for manufacturing agricultural water‑saving drip irrigation pipe. It integrates plastic extrusion, dripper sorting and conveying, thermal lamination, vacuum forming and cooling, punching, and winding into one unit. Using PE raw materials, it continuously produces drip irrigation pipe with embedded round dripper. Featuring high‑speed and stable operation, uniform water discharge, high production efficiency and easy operation, the equipment is widely applied in efficient and intelligent water‑saving irrigation for farmland, greenhouses and landscape greening, and fully meets the requirements of large‑scale continuous production.

Specification:	INLINE ROUND DRIPPER IRRIGATION PIPE MACHINE INLINE_ROUND_DRIPPER_IRRIGATION_PIPE_MACHINE
Color:	blue white custom
Availability:

Quantity:



Inquire Add to Basket

Model:
SJNX-90-YZ
Brand:
ZFSJ

PRODUCT PARAMETERS

Item	Specification
Max production speed	80 m/min
Main driving motor	75 kW
Installation power	142 kW
Max extruding capacity	260 kg/h
Dripper supplying speed	300 pcs/min
Hole drilling speed	300 pcs/min
Machine overall dimension (L×W×H)	36 × 5.5 × 3 m
Pipe diameter	12 mm / 16 mm / 20 mm
Thickness	0.5–1.2 mm
Spacing	≥100 mm

PRODUCT ADVANTAGES

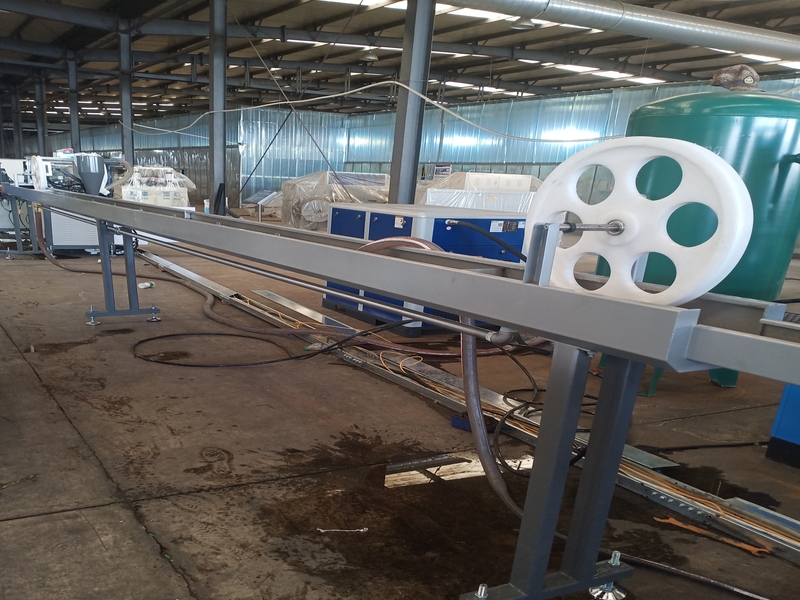

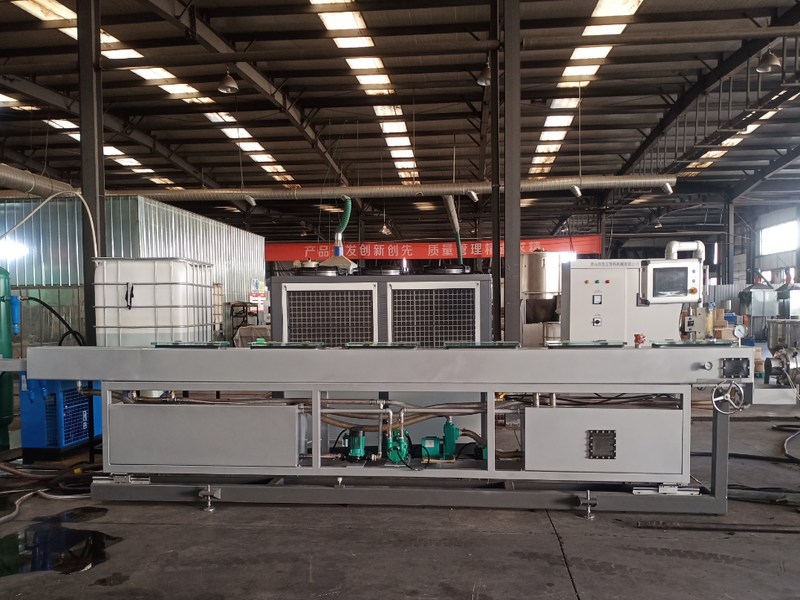

Flexible Production Capability：The machine can produce drip irrigation pipes with the same or different dripper spacing according to customer requirements. One machine features dual functions, allowing production of both round dripper irrigation pipes and PE blank pipes, improving production flexibility and efficiency.	Efficient Cooling & Drying System：The vacuum tank and cooling tank are made of stainless steel, providing excellent durability and corrosion resistance. The vacuum level can be accurately adjusted and maintained according to production requirements, while the high-power drying system ensures effective water removal during high-speed operation.
Intelligent PLC Control System：Equipped with a programmable logic controller, the machine monitors production conditions in real time and automatically corrects operating deviations. It supports remote control, parameter adjustment, and program updates for quick troubleshooting and reduced production downtime.	High-Speed & Precise Extrusion Performance：The extruder screw, die head, and sizing sleeve adopt advanced design principles and special materials to ensure uniform plasticization, smooth pipe surfaces, stable extrusion performance, and precise dimensional control during high-speed production.

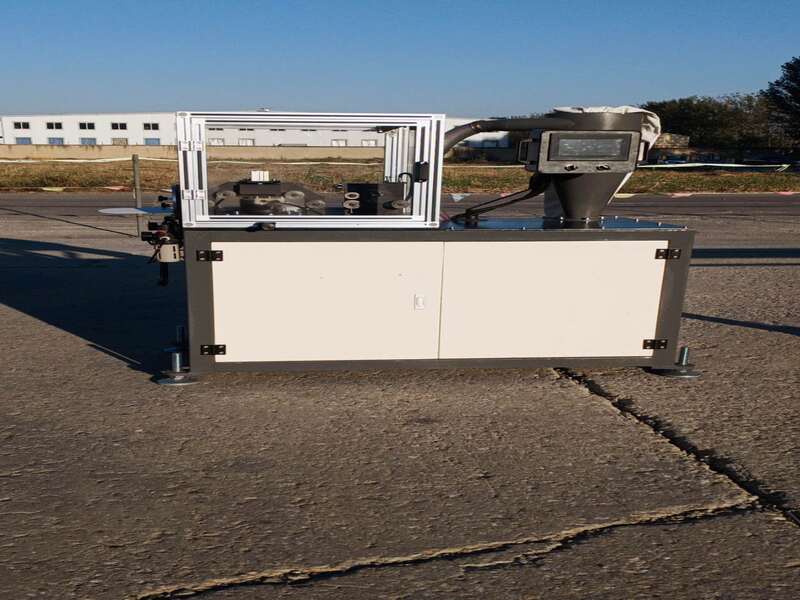

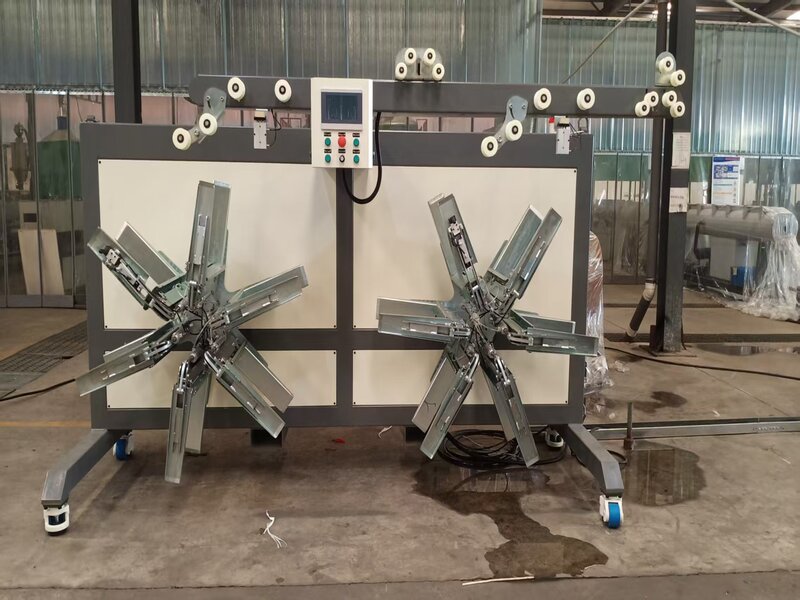

High-Precision Hole Punching System：The hole punching unit is equipped with a camera inspection system and high-precision control technology, ensuring accurate punching positions and consistent product quality.	Dual-Station Automatic Winding System：The machine is equipped with a two-station winder system, delivering neat and orderly pipe winding, improving packaging efficiency and ensuring convenient storage and transportation of finished products.

APPLICATION SCENARIOS

Drip Irrigation For Tall Crops

Drip Irrigation For Orchards & Vineyards

Drip Irrigation For Greenhouse Peppers

Precision Irrigation For Greenhouse Strawberries

Drip Irrigation For Landscape Gardening

Drip Irrigation For Grain Fields

Irrigation Tape Laying In Fields

Drip Irrigation For Greenhouse Seedlings

GLOBAL DELIVERY

Wooden Case Container Loading

Wooden Case Lifting Into Container

Multi-Container Loading Site

Comprehensive Pre-Shipment Inspection：All equipment is thoroughly inspected, tested, and cleaned before shipment to ensure reliable performance.

Secure Protective Packaging：Key components are wrapped with moisture-proof materials and reinforced packaging to prevent damage during transportation.

Professional Container Loading：The production line is loaded into export-standard containers and securely fastened to avoid movement during long-distance shipping.

Customized Protection Solutions：Wooden protection structures and tailored packaging methods are applied to safeguard critical machine parts.

Worldwide Delivery Service：With extensive export experience, we provide efficient and reliable global shipping to ensure on-time delivery.

Complete Shipping Documentation：Loading photos, packing lists, and shipping documents are provided for full shipment tracking and transparency.

ABOUT ZHIFU PLASTIC MACHINERY

Our factory was established in 1986 and is located in Tangshan, Hebei Province, China, only 110 kilometers away from Beijing. We have over 40 years of professional experience in manufacturing various drip irrigation tape machinery, dripper molds, and various irrigation products. Our products exports to more than 50 countries, with an annual export of over 300 machines and more than 500 containers of irrigation products.

The factory has more than 200 employees, equipped with its own laboratory and professional R&D technical team with more than 35 independent innovation patents, has passed ISO and CE certifications. We have professional after sales service team which is consist of 20 technicians who can provide high efficiency training. Also we have one international market sales team who has been engaged in the international market more than 10 years and provide Turn-Key Project info.
