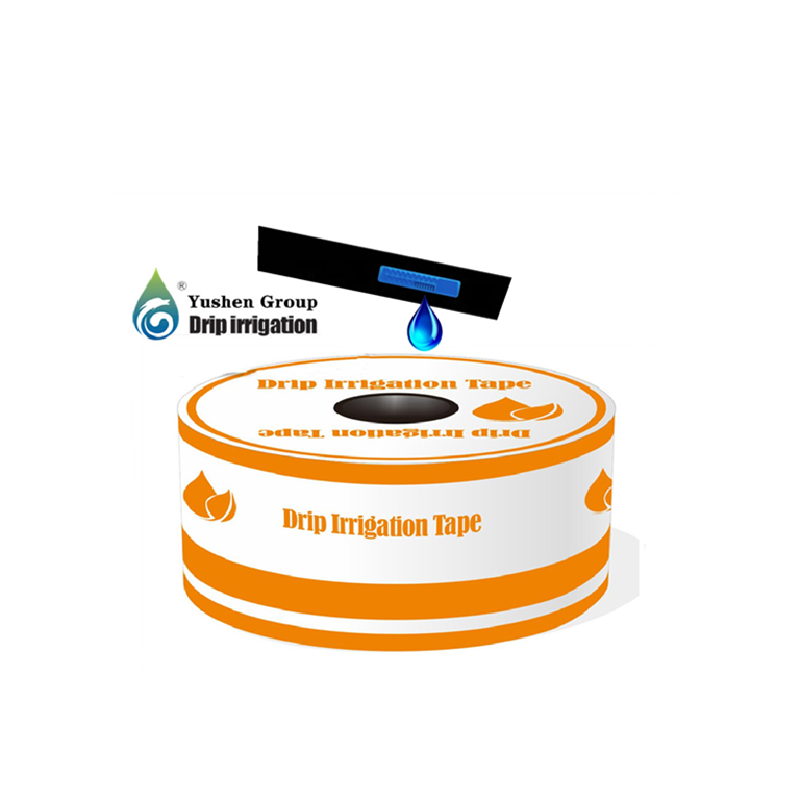

Flat Drip Irrigation Tape for Agricultural Water Saving System | Irrigation Tape Manufacturer & Wholesale Supplier

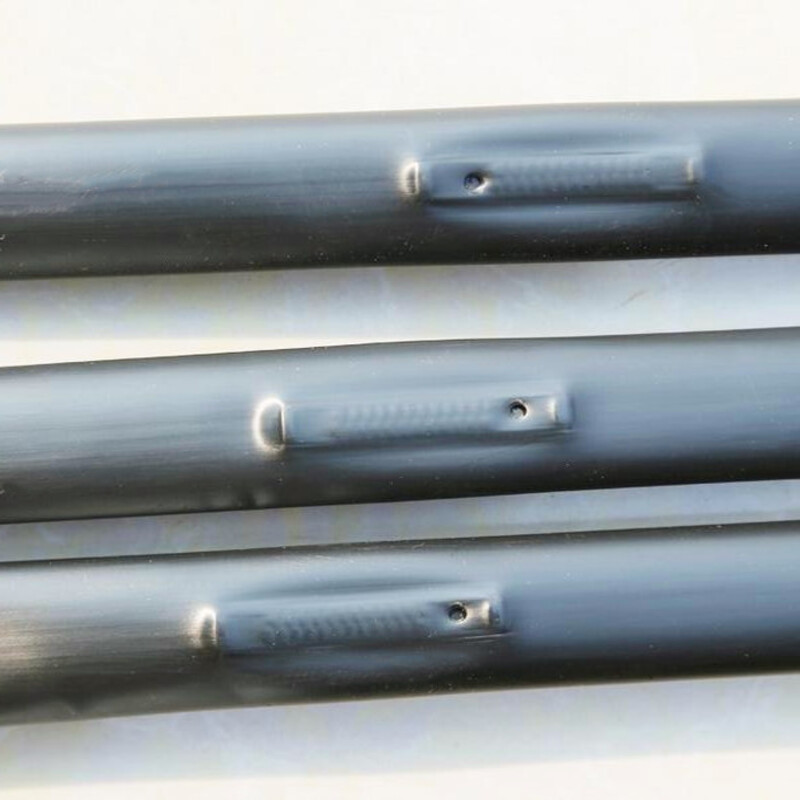

Quality proven by sales, irrigation powered by tech. Our Flat Emitter Drip Tape: ensuring every plant thrives with equal nourishment."Our Integrated Flat Emitter Drip Tape is our premier, top-selling product. Utilizing advanced manufacturing technology, high-precision injection-molded flat emitters are welded to the inner wall of the tape. Compared to standard drip tapes, it offers a significant leap in emission precision, clogging resistance, and maximum lateral length. Whether for large-scale field crops or high-value vegetable bases, this product delivers the most stable and balanced water distribution, making it the preferred choice for growers worldwide.
Specification:
Double holes
one hole
marking line
logo printing
Undergroud
Availability:
Quantity:
Inquire Add to Basket

  • XPDT

  • ZFSJ

PRODUCT ADVANTAGES

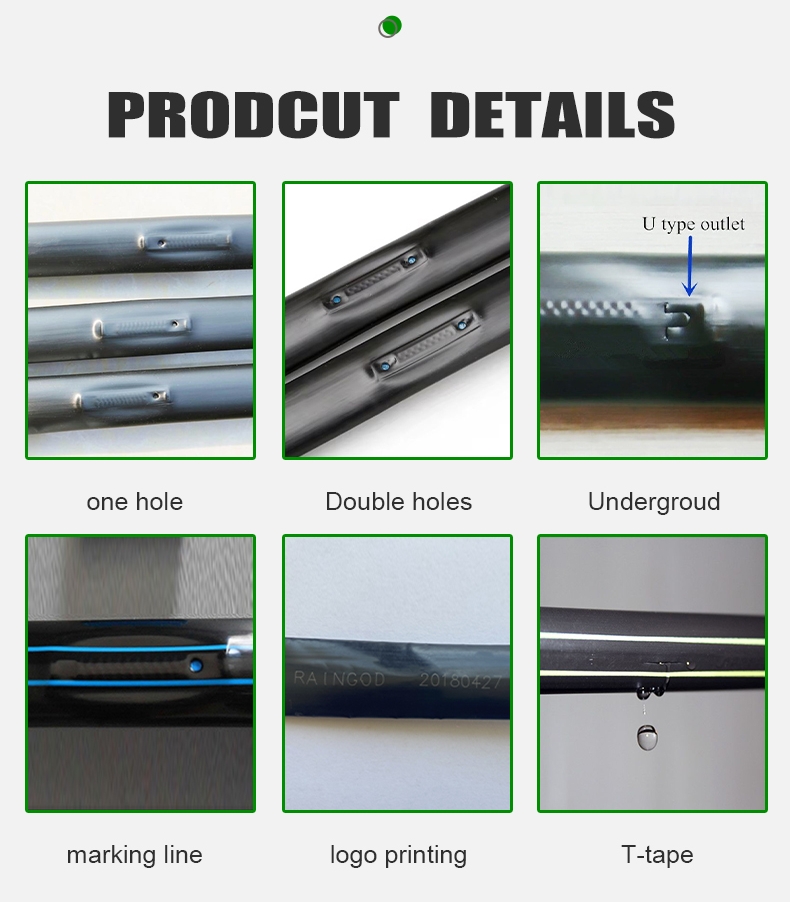

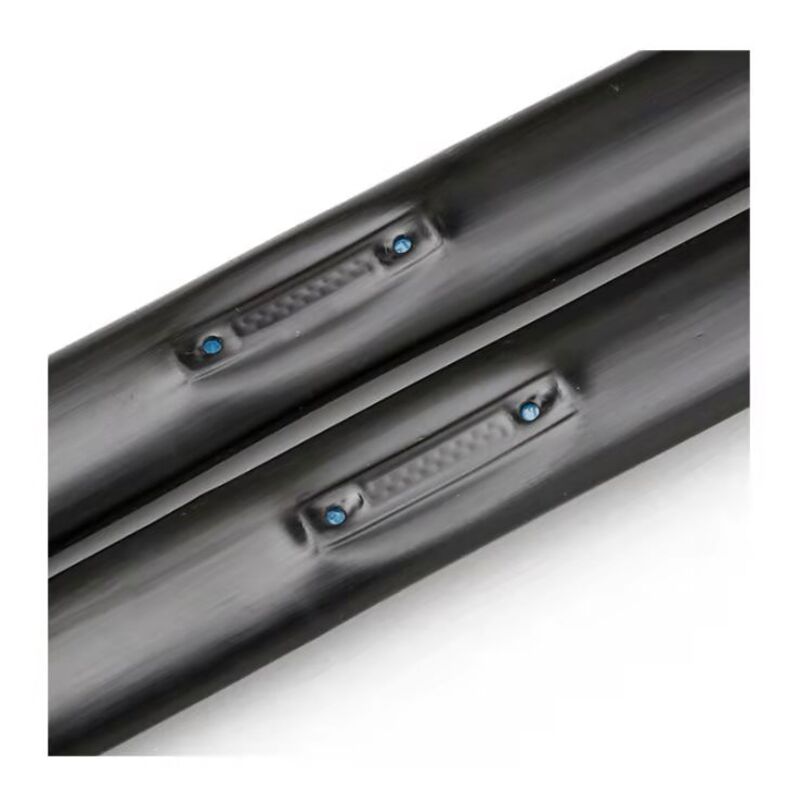

Flat Drip Irrigation Tape6







Cost-Effective Design & Easy Installation


The flat emitter structure minimizes hydraulic loss, enabling longer lateral runs while maintaining consistent water flow. Its smooth inner-wall design prevents snagging and mechanical damage during installation and recovery, reducing fittings, labor costs, and overall irrigation system expenses.



Flat Drip Irrigation Tape -(3)






High-Precision Irrigation Performance


Featuring high-precision injection molded emitters and optimized flow channels, the flat drip irrigation tape delivers excellent flow uniformity with an ultra-low CV value. The advanced turbulent labyrinth design ensures stable water distribution and improves irrigation accuracy across large planting areas.

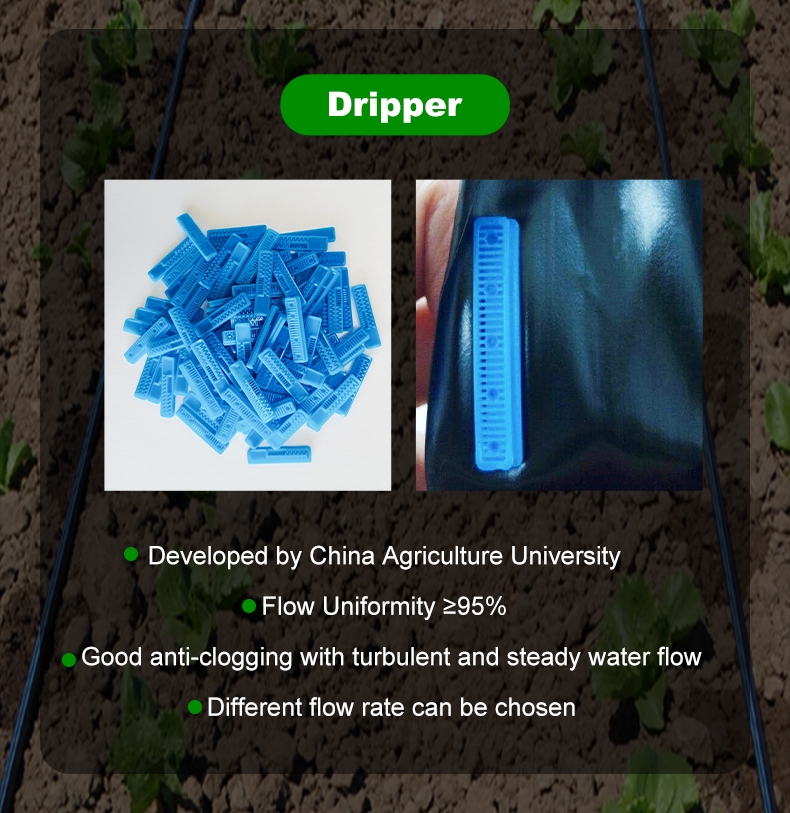

Flat Drip Irrigation Tape -(2)





Superior Anti-Clogging & Long-Term Durability


Equipped with a wide filtration window and self-cleaning turbulent flow path, the built-in emitters effectively reduce clogging risks and maintain reliable irrigation performance. Made from premium PE resin with anti-aging additives, the tape offers excellent tensile strength, UV resistance, and weather durability for demanding agricultural environments.


APPLICATION SCENARIOS

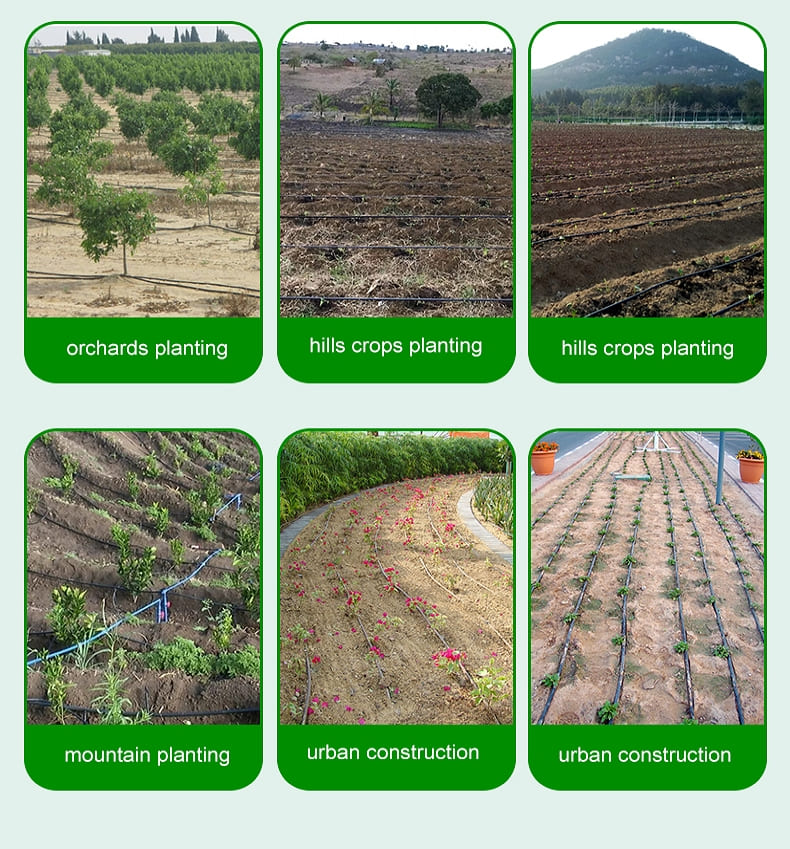

Application scenarios (1)

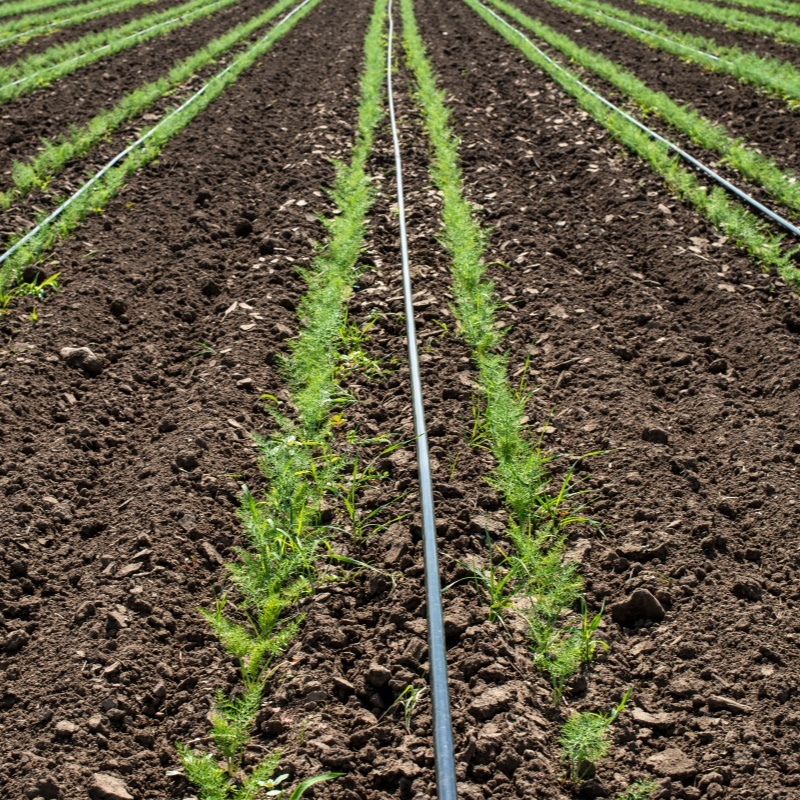

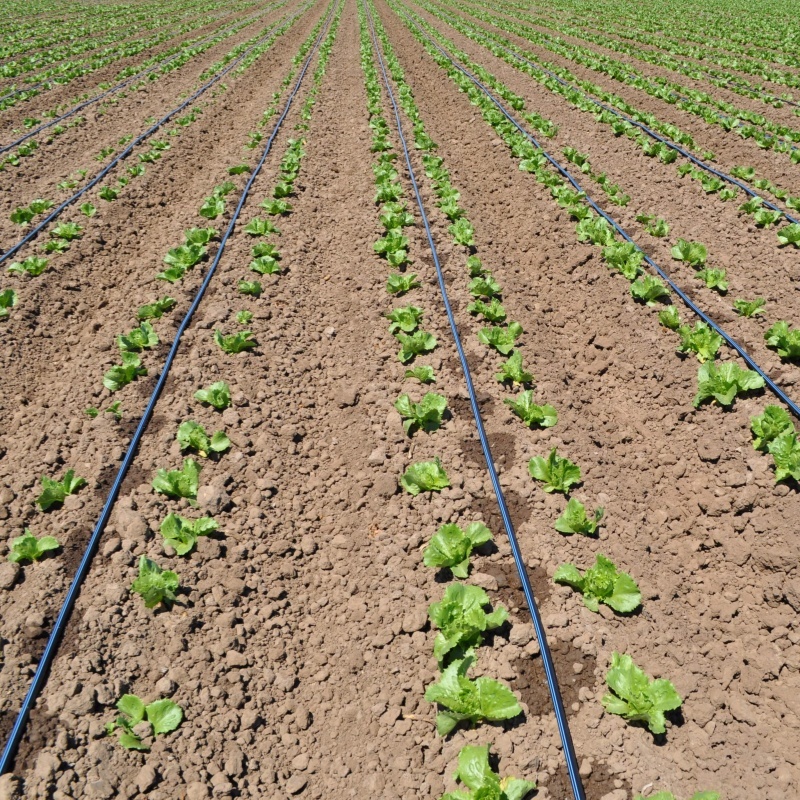

GREENHOUSE & FARMLAND APPLICATION

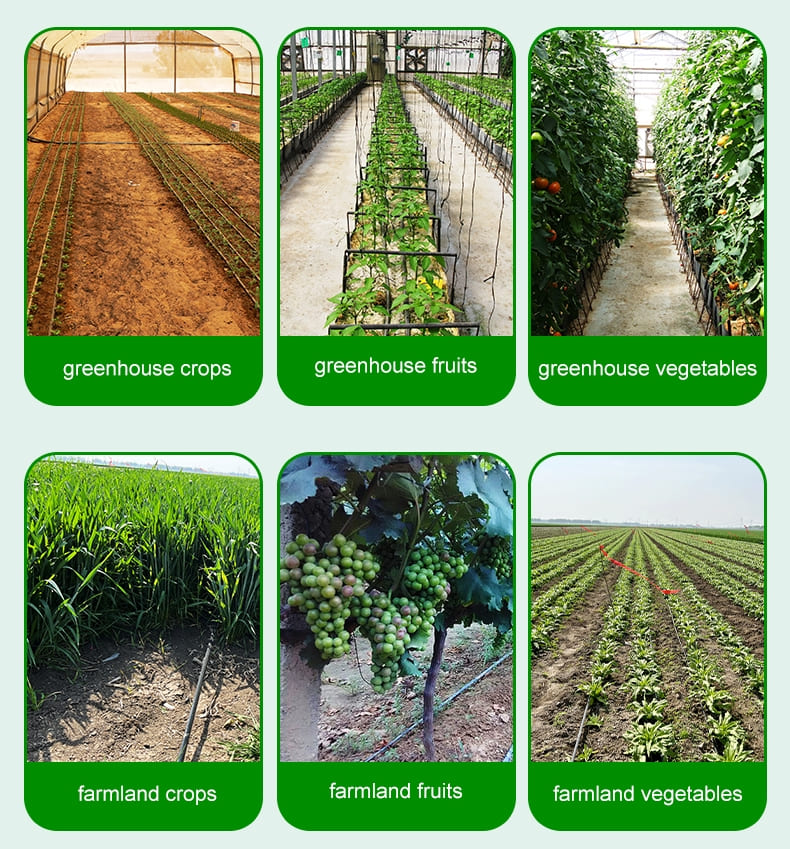

Application scenarios (2)

ORCHARD, HILLS AND URBAN USE

CUSTOMIZED SERVICES

CUSTOMIZED SERVICES


CUSTOMIZED PACKAGING SERVICE


We provide professional OEM & ODM packaging solutions for drip tape products, supporting customized LOGO, size, color, and packaging design to meet the branding and market requirements of global distributors, wholesalers, and agricultural suppliers.


With flexible customization capabilities and advanced production technology, we help customers create differentiated irrigation products, enhance brand recognition, and achieve efficient bulk distribution.


Customization Options:

  • Custom Logo Printing – Strengthen your brand identity with personalized packaging solutions.

  • Flexible Size Options – Customized packaging dimensions according to product specifications and shipping requirements.

  • Color & Design Customization – Develop unique visual designs to match your target market.

  • OEM & ODM Support – Complete service from product packaging design to mass production.




CORE PRODUCT SPECIFICATIONS

Item Specification
Diameter 12 mm / 16 mm / 20 mm / 22 mm
Thickness 0.15–0.4 mm
Roll length 50–3500 m
Flow rate 0.35–4 L

PRODUCTION OPTIONAL CONFIGURATIONS

Diameter(mm) Thickness(mm) Thickness(mil) Spacing(cm) Roll Length(m/roll) water flow
(L/H)		 Normal working Pressure
(mpa)
12,16,20,22 0.15 6 10-50 500-3500 0.35L-4L 0.1
12,16,20,22 0.16 6.3 10-50 500-3000 0.35L-4L 0.1
12,16,20,22 0.17 6.7 10-50 500-3000 0.35L-4L 0.1
12,16,20,22 0.18 7 10-50 500-3000 0.35L-4L 0.1
12,16,20,22 0.2 8 10-50 500-3000 0.35L-4L 0.1
12,16,20,22 0.25 10 10-50 500-2000 0.35L-4L 0.1
12,16,20,22 0.3 12 10-50 500-2000 0.35L-4L 0.1
12,16,20,22 0.4 16 10-50 500-1000 0.35L-4L 0.1

FARM INSTALLATION TECHNICAL DATA

Maximum Paving Length
Flow Rate(L/H) Space Between Emitters(mm)
Max Paving Length (M) with 10% Flow Variation Spacing(mm)
100 150 200 250 400 500
1 60 81 98 ‑ ‑ ‑
1.38 52 68 83 ‑ ‑ ‑
2 ‑ ‑ 65 86 ‑ ‑
3 ‑ ‑ ‑ ‑ 81 94

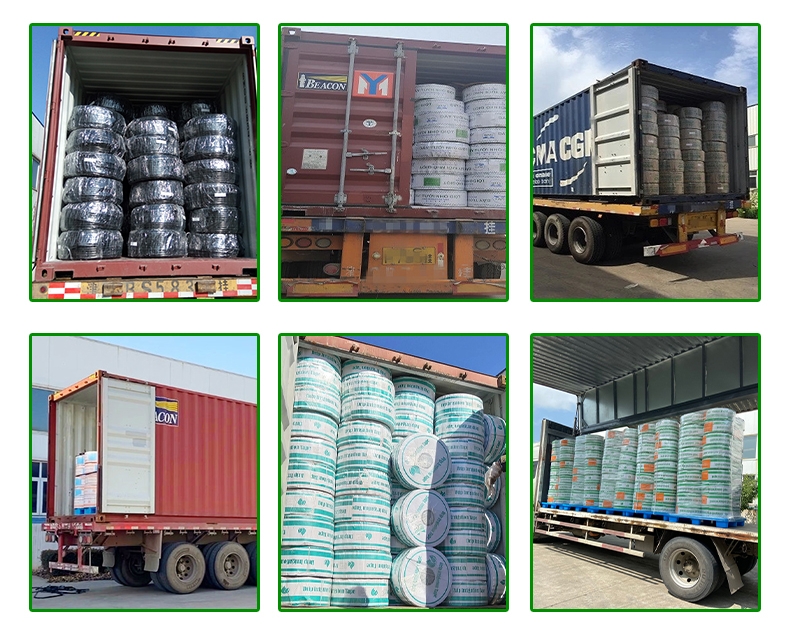

PACKING & CONTAINER LOADING INFO


Diameter (mm) Thickness (mm) Dripper Distance (cm) M/Roll 20GP Container (rolls) 40HQ Container (rolls)
16 0.15 10 1000 580 1430
16 0.15 20 1000 850 1920
16 0.15 10 1500 460 1100
16 0.15 20 2000 460 1100
16 0.2 10 1000 580 1430
16 0.2 20 1000 850 192
16 0.2 30 2000 460 1100
16 0.2 20 2300 370 940
16 0.2 30 2500 350 920
16 0.2 30 3000 320 860
16 0.3 30 1500 460 1100
16 0.4 20 1000 460 1100
16 0.5 20 800 460 1100

The package size and roll meter of customized products may deviate according to the actual situation. Please confirm the actual container loading after verifying with our sales and R&D team.


40+years

Industry Experience

6000+

Customers Served

40+

Countries Exported To

24h
Online Service

ABOUT YUSHEN

YUSHEN (Tangshan) Water Saving & Technology Group Co., Ltd. was established in 1986 and is located in Tangshan, Hebei, China. With a 100,000㎡ production base and over 200 employees, YUSHEN specializes in manufacturing drip irrigation products and plastic fittings.

With more than 30 years of OEM & ODM experience, YUSHEN offers drip tape, irrigation pipes, PE pipes, micro spray tubes, and related plastic products. Equipped with over 30 production lines, the company achieves a monthly capacity of 50,000 rolls of drip tape, exporting products to more than 50 countries worldwide.

Backed by professional R&D capabilities, 35 national patents, and ISO & CE certifications, YUSHEN is committed to providing high-quality and reliable water-saving irrigation solutions for global customers.
