MICRO SPRAYING TAPE MAKING MACHINE

WORKING THEORY

The micro spraying tape making machine consists of an electric control system, transmission mechanism, extrusion unit, traction & punching unit and winding unit. During operation, the automatic feeder conveys the plastic raw materials into the drying hopper. After drying in the hopper, the materials are fully melted and plasticized inside the barrel of extruder screw. The plastic extruded plastic pipe passes through the durable net and spiral extrusion die, then undergoes cooling and sizing by the vacuum calibrator. It is subsequently guided by traction rollers and transition rollers, punched by the punching unit, and finally goes to the double-station winder. The finished spraying hose is packed well and stock in the ware house.

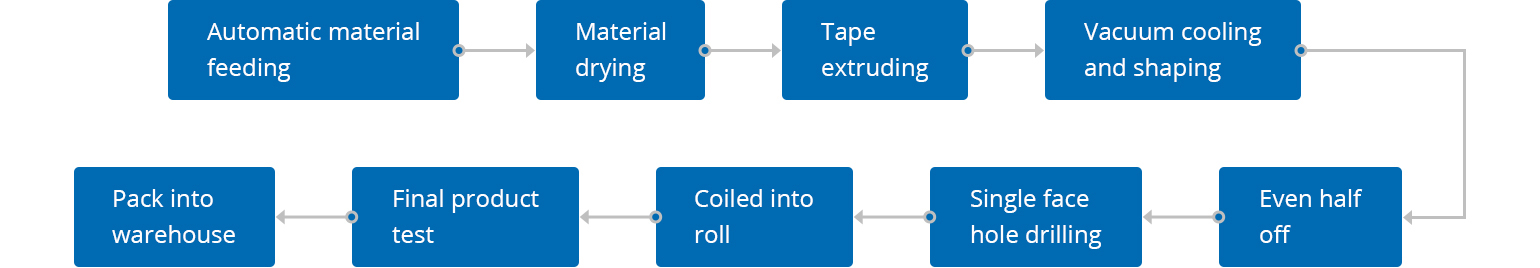

PRODUCTION PROCESS

APPLICATIONS

FIELD GRAIN CROPS

For large‑scale farmland planting of wheat, corn, cotton, soybean and other crops. It realizes water‑saving irrigation and uniform water supply to improve crop yields.
GREENHOUSE FRUITS AND VEGETABLES

Suitable for greenhouse vegetables, strawberries, grapes, citrus, pitaya and more. It provides precise water control, prevents diseases, improves quality and increases output.
ORCHARDS & NURSERIES

Precision root irrigation for fruit trees and seedlings. Boosts growth, cuts weeds, saves water.
LANDSCAPING

Including urban green belts, barren hill afforestation and slope greening.
AGRICULTURAL PLANTING IN ARID AREAS

Applied in Northwest arid regions, Gobi agriculture and saline - alkali land improvement. It achieves high - efficiency water saving and reduces waste of water and fertilizer.

MACHINE INSTALLATION AND DEBUGGING SERVICE

we provide free machine installation and debugging for customer. We have an experienced after-sales service team that offers 24-hour online support. They can assist you in resolving installation and usage issues via email, fax, and various online chat tools. We can also provide on-site services based on your specific needs.

RELATED MACHINE

1
2
3
»
Turn to Page Go

FAQ

Q: What is the machine max extruding capacity and production speed?

A: The max exturding capacity is 80KG/H. The max production speed is: 50M/MIN.

Q: What is the machien guarantee?

A: The gurantee for the machine is one year.

Q: What is the machine delivery time?

A: Generally, it will take 30-45 working days by receiving the deposit.

Q: How many containers are needed for loading the machine and full set auxiliary equipment?

A: One pcs 40 HQ Container are needed.
