Internal Strip Drip Irrigation Tape Production Line Manufacturer for Agricultural Plastic Extrusion

Share to:

Internal Strip Drip Irrigation Tape Production Line Manufacturer for Agricultural Plastic Extrusion

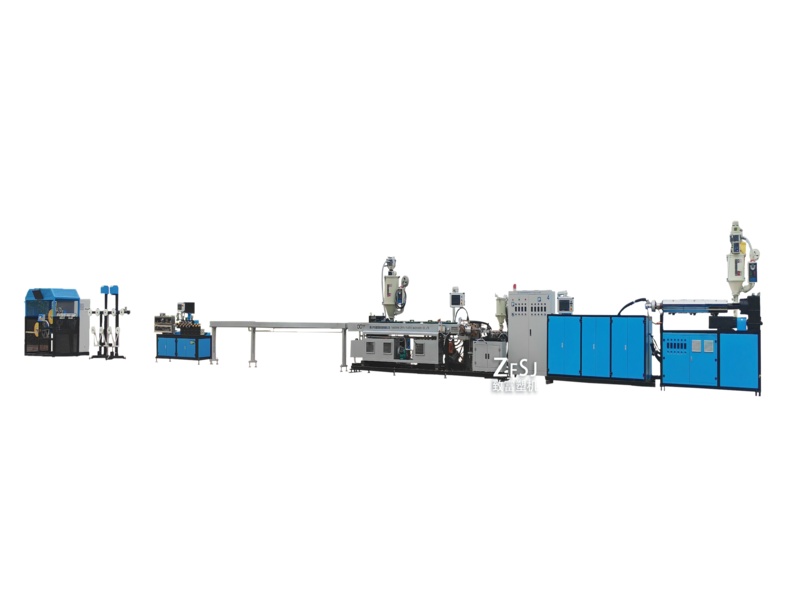

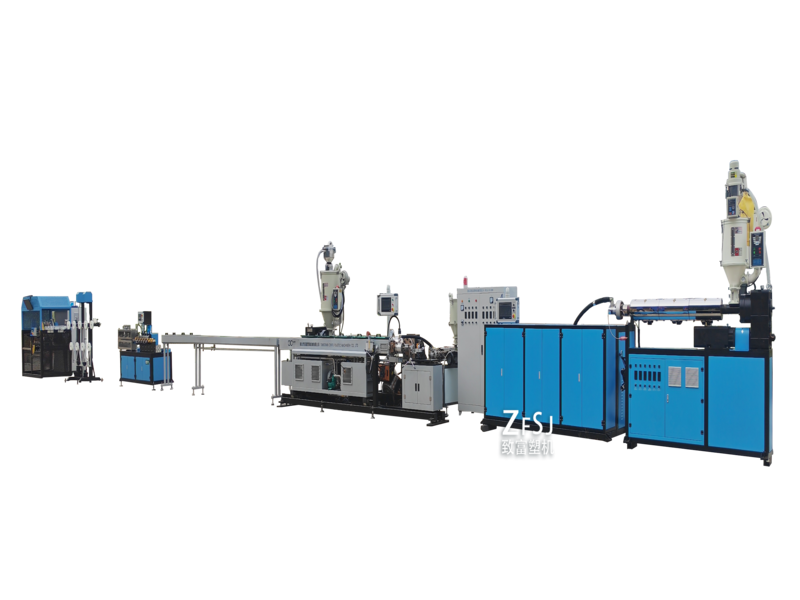

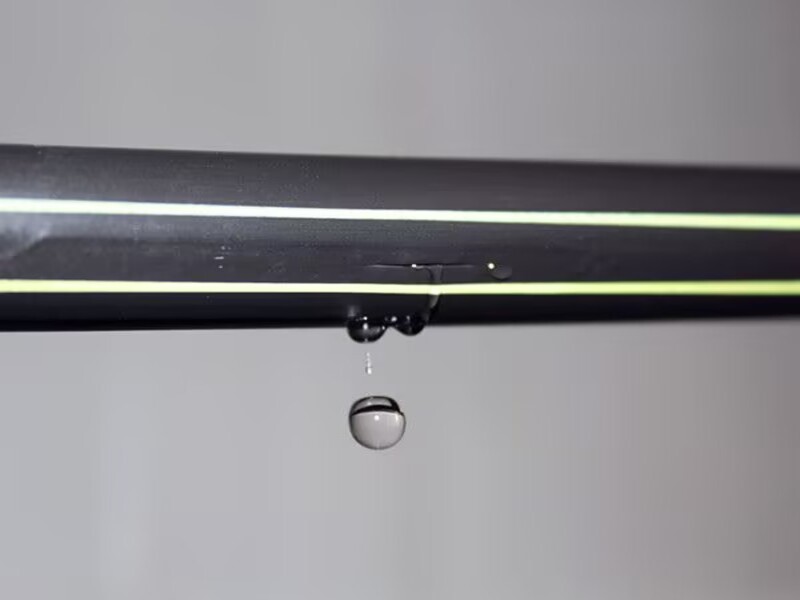

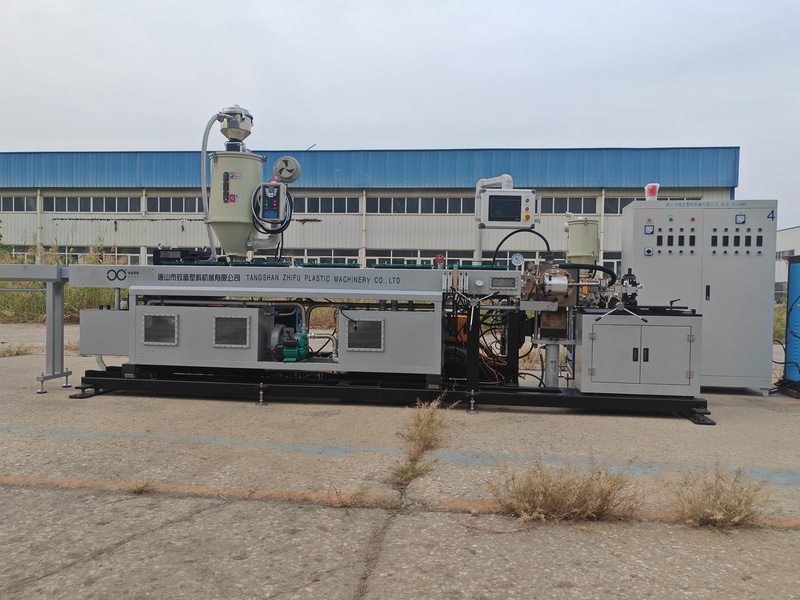

The internal strip drip irrigation tape production line is used to produce the strip drip irrigation tape. It focus on integration, flexible adaptation and high-efficiency automation. The machine adopts Omron control system, PLC with HMI touchscreen manages all critical parameters-extrusion temperature, strip insertion synchronization, line speed, and automatic winding ensuring repeatable quality while minimizing manual intervention, ideal for both large-scale industrial operations and farmer-owned production facilities .
User-Friendly Design for Agricultural Producers: Engineered with simplified controls and modular components, this line is accessible for farmers and agricultural cooperatives seeking to produce their own drip irrigation tape on-site, reducing dependency on external suppliers and ensuring timely availability for planting seasons .

Specification:	INTERNAL STRIP DRIP IRRIGATION TAPE PRODUCTION LINE INTERNAL STRIP DRIP IRRIGATION TAPE PRODUCTION LINE (2)
Color:	blue whilte custom
Availability:

Quantity:



Inquire Add to Basket

Model:
SJNXT-90
Brand:
ZFSJ

PRODUCT PARAMETERS

Item	Specification
Max production speed	300 m/min
Screw diameter	90 mm
L/D ratio	38:01:00
Max extruding capacity	280 kg/h
Main motor	Servo 75 kW
Tape diameter	16 mm / 20 mm / 22 mm
Tape thickness	0.15–0.40 mm
Outlet space	100 / 150 / 200 / 300 mm (Optional)
Tape flow rate	1.0 / 1.5 / 2.0 L/h (Optional)
Machine installation power	185 kW
Machine size (L×W×H)	36 × 4.5 × 3 m

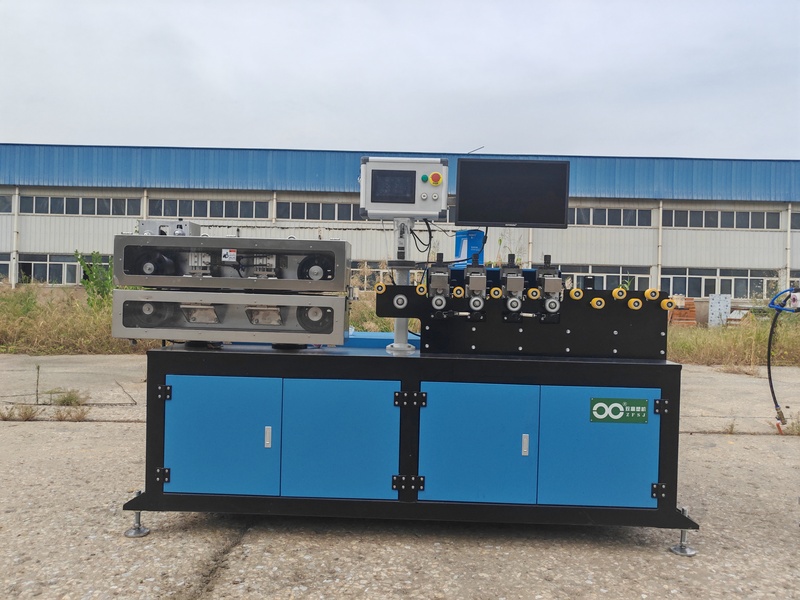

Strip forming system	Big shaping wheel + belt / small shaping wheel (Optional)
Punching method	Laser / mechanical (Optional)

PRODUCT ADVANTAGES

Precision Embedding & Flexible Water Distribution Technology：The system integrates high-speed strip manufacturing with continuous extrusion. The outlet space can be adjusted from 100mm to 1000mm to meet different crop requirements, ensuring uniform water emission and optimal root-zone hydration for vegetables, row crops, and orchards.

Fully Automated PLC Control System：The centralized Omron PLC with HMI touchscreen manages key parameters including extrusion temperature, dripper insertion synchronization, line speed, and automatic winding. It ensures stable and repeatable production quality while reducing manual operation, suitable for large-scale industrial production and farmer-owned production facilities.

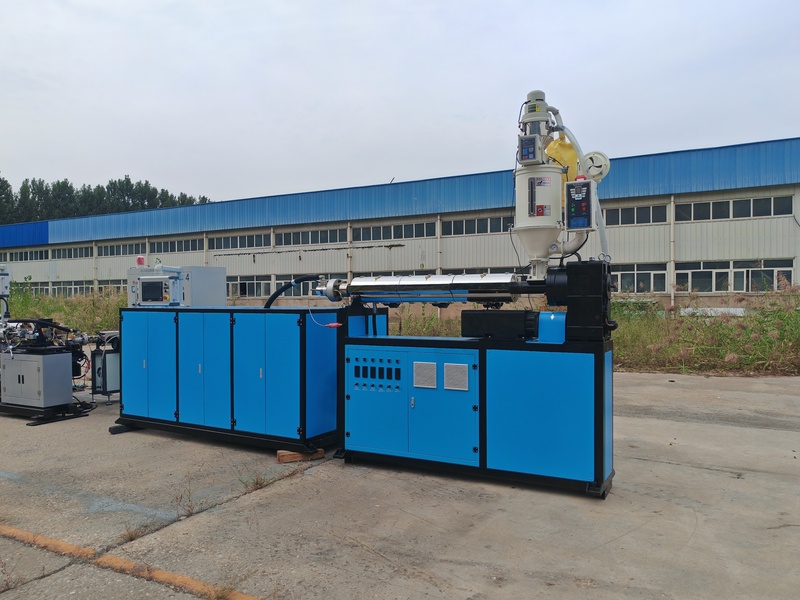

High-Performance Extrusion & Shaping System：Equipped with a high-performance single-screw extrusion unit featuring a 38:1 L/D ratio screw made of 38CrMoAlA nitriding alloy steel with HV950+ surface hardness. The multi-zone temperature control system ensures consistent melt quality, uniform wall thickness of 0.15-0.4mm, and production speeds up to 300m/min. The strip shaping method supports big shaping wheel + belt or small shaping wheel options for flexible production.

High-Precision Punching Technology：The punching system supports laser and mechanical options. Laser punching provides high precision, no deformation, no burrs, no damage, and no water leakage. Blade slitting offers precise punching driven by a servo motor, with low cost, easy maintenance, anti-reverse siphoning, and anti-clogging functions.

APPLICATION SCENARIOS

Drip Irrigation For Tall Crops

Drip Irrigation For Orchards & Vineyards

Drip Irrigation For Greenhouse Peppers

Precision Irrigation For Greenhouse Strawberries

Drip Irrigation For Landscape Gardening

Drip Irrigation For Grain Fields

Irrigation Tape Laying In Fields

Drip Irrigation For Greenhouse Seedlings

GLOBAL DELIVERY

Wooden Case Container Loading

Wooden Case Lifting Into Container

Multi-Container Loading Site

Comprehensive Pre-Shipment Inspection：All equipment is thoroughly inspected, tested, and cleaned before shipment to ensure reliable performance.

Secure Protective Packaging：Key components are wrapped with moisture-proof materials and reinforced packaging to prevent damage during transportation.

Professional Container Loading：The production line is loaded into export-standard containers and securely fastened to avoid movement during long-distance shipping.

Customized Protection Solutions：Wooden protection structures and tailored packaging methods are applied to safeguard critical machine parts.

Worldwide Delivery Service：With extensive export experience, we provide efficient and reliable global shipping to ensure on-time delivery.

Complete Shipping Documentation：Loading photos, packing lists, and shipping documents are provided for full shipment tracking and transparency.

ABOUT ZHIFU PLASTIC MACHINERY

Our factory was established in 1986 and is located in Tangshan, Hebei Province, China, only 110 kilometers away from Beijing. We have over 40 years of professional experience in manufacturing various drip irrigation tape machinery, dripper molds, and various irrigation products. Our products exports to more than 50 countries, with an annual export of over 300 machines and more than 500 containers of irrigation products.

The factory has more than 200 employees, equipped with its own laboratory and professional R&D technical team with more than 35 independent innovation patents, has passed ISO and CE certifications. We have professional after sales service team which is consist of 20 technicians who can provide high efficiency training. Also we have one international market sales team who has been engaged in the international market more than 10 years and provide Turn-Key Project info.

ABOUT US

SERVICE

DRIP IRRIGATION TAPE MACHINE MANUFACTURER

WHY CHOOSE US

40+ years

Industry Experience
6000+

Customers Served
40+

Countries Exported To
24h

Online Service

FAQs

What is the delivery time and payment term?

Generally, the production lead time is 30–45 working days after receiving the deposit. Our standard payment term is 30% T/T as a deposit and 70% T/T before shipment. We can also accept L/C and D/P according to different customer requirements.
What warranty do you provide for the machine?

All drip irrigation machines are covered by a one-year warranty. During the warranty period, we provide technical support and assistance to ensure stable machine operation.
What after-sales service do you offer?

We provide free machine installation guidance and commissioning support. Our experienced after-sales team offers 24/7 online technical assistance via email, video calls, and online communication tools. On-site service can also be arranged according to customer requirements.
Are you a manufacturer, and where is your factory located?

Yes, we are a professional manufacturer specializing in drip irrigation machinery. Our factory is located in Tangshan City, Hebei Province, China, approximately 100 kilometers from Beijing, with convenient transportation access.
