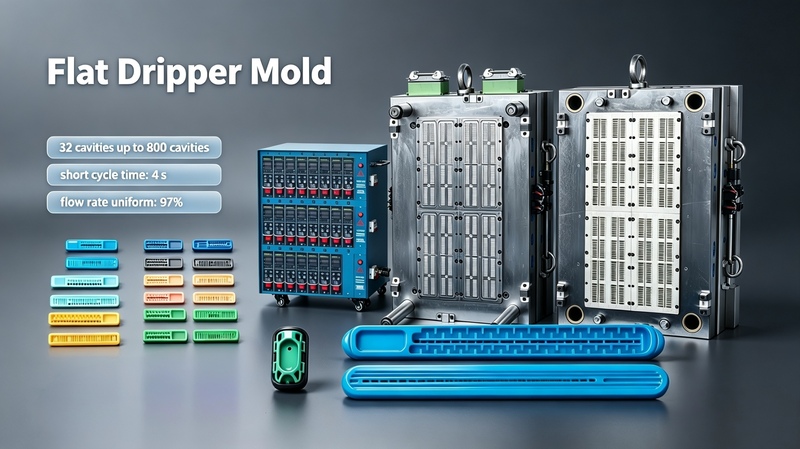

High Precision Flat Emitter Injection Mold 128-800 Cavity Manufacturer

Share to:

High Precision Flat Emitter Injection Mold 128-800 Cavity Manufacturer

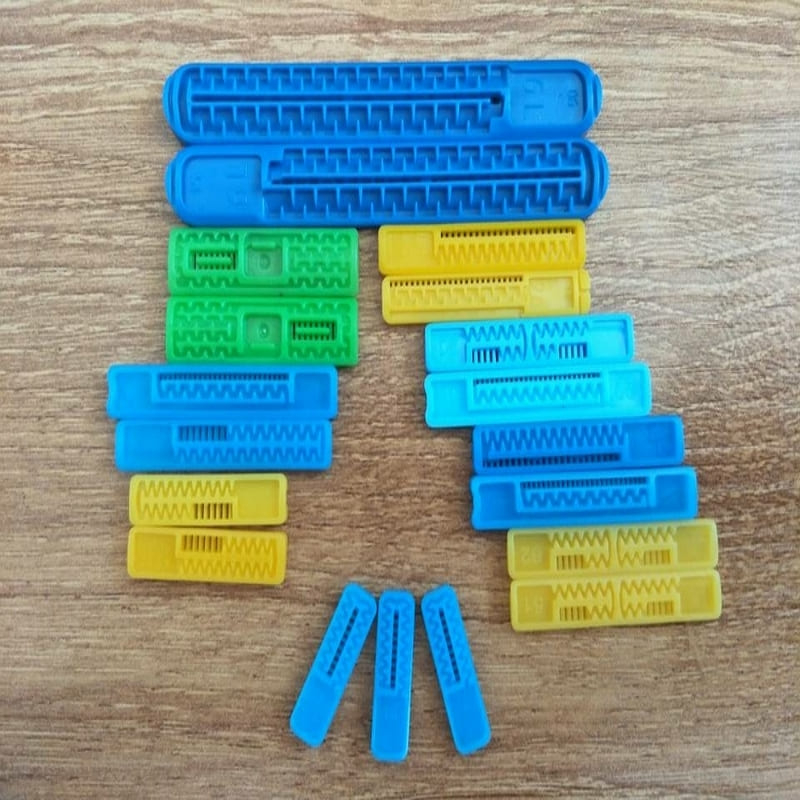

The Flat Emitter Injection Mold is designed for high-precision multi-cavity injection molding, available in 128 to 800 cavities. It features SWEDEN SS136 mold steel, LKM mold frame, and MAPE hot runner system, with water-cycle cooling and automatic production. With in-house Mold CNC and precision processing equipment, the mold achieves a flow rate deviation of ≤5% and a guaranteed service life of five million times.

Availability:

Quantity:



Inquire Add to Basket

Model:
FLAT EMITTER INJECTION MOLD
Brand:
ZFSJ

FLAT EMITTER INJECTION MOLD PARAMETERS

CAVITY QUANTITY	128Cavities	256Cavities	384Cavities	448Cavities	512Cavities	640Cavities	800Cavities
Gate Forms	Hot Runner Inlet
Pushing-out Mode	One-Time Injection
Cooling Mode	Water-Cycle Cooling
Working Mode	Automatic Production
Guarantee Life	Five Million Times
Flow Rate Deviation	≤5%
Overall Dimension	500450455	530460480	580660550	540780550	540850570	630860600	620950600
Injection Machine	2000KN	2500KN	2500KN	2700KN	3000KN	3200KN	3600KN

FLAT EMITTER INJECTION MOLD ADVANTAGES

High-Precision Mold Processing：We have our own Mold CNC and more than 20 sets of precision processing and testing equipment, including SWISS GF+ electrical spark machines, slow feeding and cutting machines, JAPAN F3-MAKINO vertical CNC machines, four-axis linkage spindle CNC machines, and image precision measuring instruments. These facilities support high-precision processing and inspection of Flat Emitter Injection Molds.	≤5% Flow Rate Deviation：The processed mold achieves a flow rate deviation of less than or equal to 5%. Precision CNC processing and image measuring equipment are used as part of the mold manufacturing and inspection process.
Five Million Times Guaranteed Life：The Flat Emitter Injection Mold has a guaranteed service life of five million times. Mold material selection, precision processing, assembly, trial testing, and final inspection are controlled through the company's quality guarantee procedures.	128-800 Cavity Options：The mold is available in 128, 256, 384, 448, 512, 640, and 800 cavities, providing multiple configuration options for different production requirements. Corresponding injection machine capacities range from 2000KN to 3600KN.
High-Precision Mold Materials：The mold uses SWEDEN mold steel SS136, combined with an LKM mold frame. The specified mold materials are selected to support the high precision and long service life requirements of the Flat Emitter Injection Mold.	MAPE Hot Runner System：The Flat Emitter Injection Mold uses a MAPE hot runner system and hot runner inlet configuration. The hot runner system is integrated into the mold design to support the specified injection molding process.

FLAT EMITTER INJECTION MOLD APPLICATION SCENARIOS

Drip Irrigation For Tall Crops

Drip Irrigation For Orchards & Vineyards

Drip Irrigation For Greenhouse Peppers

Precision Irrigation For Greenhouse Strawberries

Drip Irrigation For Landscape Gardening

Drip Irrigation For Grain Fields

Irrigation Tape Laying In Fields

Drip Irrigation For Greenhouse Seedlings

FLAT EMITTER INJECTION MOLD GLOBAL DELIVERY

Wooden Case Container Loading

Wooden Case Lifting Into Container

Multi-Container Loading Site

Comprehensive Pre-Shipment Inspection：All equipment is thoroughly inspected, tested, and cleaned before shipment to ensure reliable performance.

Secure Protective Packaging：Key components are wrapped with moisture-proof materials and reinforced packaging to prevent damage during transportation.

Professional Container Loading：The production line is loaded into export-standard containers and securely fastened to avoid movement during long-distance shipping.

Customized Protection Solutions：Wooden protection structures and tailored packaging methods are applied to safeguard critical machine parts.

Worldwide Delivery Service：With extensive export experience, we provide efficient and reliable global shipping to ensure on-time delivery.

Complete Shipping Documentation：Loading photos, packing lists, and shipping documents are provided for full shipment tracking and transparency.

ABOUT ZHIFU PLASTIC MACHINERY

Our factory was established in 1986 and is located in Tangshan, Hebei Province, China, only 110 kilometers away from Beijing. We have over 40 years of professional experience in manufacturing various drip irrigation tape machinery, dripper molds, and various irrigation products. Our products exports to more than 50 countries, with an annual export of over 300 machines and more than 500 containers of irrigation products.

The factory has more than 200 employees, equipped with its own laboratory and professional R&D technical team with more than 35 independent innovation patents, has passed ISO and CE certifications. We have professional after sales service team which is consist of 20 technicians who can provide high efficiency training. Also we have one international market sales team who has been engaged in the international market more than 10 years and provide Turn-Key Project info.
