In any drip or micro-sprinkler irrigation system, the drip tape or micro spray tape is only half the story. The other half—the circulatory system that delivers water from the source to the field—is the PE irrigation pipe. These high-density polyethylene (HDPE) pipes form the mainlines, sub-mains, and manifolds that carry pressurized water across farms, orchards, and greenhouses.

For B2B buyers—irrigation system integrators, pipe factories, and agricultural infrastructure contractors—understanding the PE irrigation pipe extrusion line​ is essential for producing durable, pressure-rated piping at scale. At YuShen IrrigPro, our PE pipe lines are built for high-output manufacturing of 16–200mm diameter pipes used in agricultural water supply. This guide details the main equipment and walks through the complete production process.

1. What Is a PE Irrigation Pipe Extrusion Line?

A PE irrigation pipe extrusion line​ is a continuous production system that converts HDPE or LDPE resin pellets into finished plastic pipes. Unlike thin-wall drip tape machines, PE pipe lines produce thicker-walled, pressure-rated products designed for long-term underground or above-ground installation.

The line typically manufactures pipes in diameters ranging from 16mm to 200mm, with pressure ratings from 0.4 MPa to 1.6 MPa. These pipes are the backbone of every large-scale irrigation network.

2. Main Equipment of a PE Irrigation Pipe Extrusion Line

3. The Production Process: Step by Step

Step 1: Raw Material Preparation & Feeding

The process starts with HDPE virgin resin (PE80 or PE100 grade), often blended with a small percentage of high-quality recycled flakes and masterbatch for color (typically black, containing carbon black for UV protection). A vacuum loader feeds the material into the extruder hopper.

Step 2: Single-Screw Extrusion

The HDPE granules enter a high-torque single-screw extruder. The barrel is divided into multiple temperature zones (160–220°C). As the screw rotates, the material is conveyed forward, compressed, sheared, and melted into a homogeneous viscous fluid. A melt pressure sensor​ and temperature controller​ maintain optimal processing conditions.

Step 3: Die Head Forming

The molten HDPE is pushed through a spiral or basket-type die head. The die core determines the pipe's inner diameter, while the die ring sets the outer diameter. A well-designed die ensures:

• Uniform wall thickness around the entire circumference

• A smooth inner surface (critical for low friction loss)

• A glossy outer surface

Step 4: Vacuum Calibration

Immediately after exiting the die, the hot pipe enters the vacuum calibration tank. A calibrated sleeve with vacuum holes draws the pipe against its inner surface, locking the outer diameter to the exact nominal size (e.g., 63mm, 90mm). Simultaneously, a water spray cools the pipe from the outside. This dual action fixes the dimensions before the material fully solidifies.

Step 5: Spray Cooling Bath

The pipe then travels through a spray cooling tank. Fine water mist nozzles cool the pipe evenly from all sides. For thick-walled pipes, a longer cooling zone (6–12 meters) is essential to ensure complete crystallization of the HDPE molecules, which directly impacts the pipe's burst pressure rating.

Step 6: Haul-Off (Traction)

A caterpillar haul-off​ grips the pipe between two endless rubber tracks. The speed of the tracks is synchronized with the extruder output. Precise speed control is critical: too fast causes thinning of the pipe wall; too slow creates back-pressure that can distort the pipe profile.

Step 7: Cutting or Coiling

Depending on pipe diameter and customer requirements:

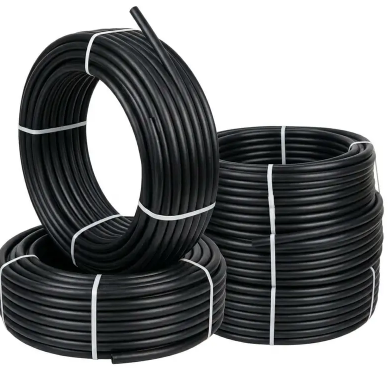

• Small Diameters (16–63mm): The pipe is fed into an automatic coiler, wound into coils of 50m, 100m, or 200m, and strapped with plastic straps.

• Large Diameters (75–200mm): A planetary cutter​ slices the pipe into straight 6m or 12m lengths. The cut is clean, burr-free, and ready for socket or electrofusion joining.

Step 8: Inspection & Packaging

Finished pipes undergo pressure testing (sample-based), wall thickness measurement, and visual inspection. Qualified products are labeled with size, pressure rating, and batch number, then shrink-wrapped or bundled for shipment.

4. Key Technical Considerations for B2B Buyers

5. Applications of PE Irrigation Pipes

• Mainlines & Sub-mains: Transport water from pumps or reservoirs to field laterals.

• Drip System Manifolds: Connect control valves to drip tape zones.

• Sprinkler Laterals: Carry water to impact sprinklers or micro-sprinklers.

• Drainage & Sub-surface Irrigation: HDPE pipes with perforations serve as drainage laterals.

• Fertigation Supply Lines: Resistant to chemical corrosion from fertilizers and acids.

6. Why B2B Buyers Invest in a PE Pipe Extrusion Line

• Infrastructure Demand: Every irrigation project—from a 5-hectare greenhouse to a 5,000-hectare farm—requires PE piping. The market is vast and recurring.

• Complementary Product: Pipe production pairs perfectly with drip tape and micro spray tape manufacturing, allowing factories to offer complete irrigation kits.

• Long Service Life: HDPE pipes last 25–50 years, making them a premium, trusted product category.

• High Margin Potential: Pipes are sold by weight; efficient extrusion with optimized wall thickness yields strong margins.

• Government & NGO Projects: Large-scale rural development and water infrastructure projects often procure PE pipes in bulk.

7. Conclusion

A PE irrigation pipe extrusion line​ is the foundation of any comprehensive irrigation manufacturing business. By combining high-torque extrusion, precision vacuum calibration, and automated coiling or cutting, it produces the durable HDPE pipes that form the circulatory system of modern agriculture.

For irrigation factories aiming to become one-stop solution providers, investing in a reliable line from an experienced PE pipe machine manufacturer​ is not optional—it is essential for capturing the full value chain from source to field.
