While thin-wall drip tape dominates row crops, the round emitter drip irrigation pipe production line is the undisputed champion of durability and high-pressure performance. Commonly referred to as "cylindrical dripper pipe" or "heavy-duty drip line," this equipment produces a thicker-walled product (typically 0.6mm to 1.2mm) designed to withstand harsh field conditions, mechanical harvesting, and higher operating pressures.
For B2B buyers targeting orchards, vineyards, greenhouses, and subsurface drip irrigation (SDI) projects, this machine is a critical investment. At Yushen Irrigation, our round emitter lines combine robust extrusion with micron-accurate dripper insertion technology. This article explains the complex workflow of producing cylindrical dripper pipes and why they command a premium in the global irrigation market.

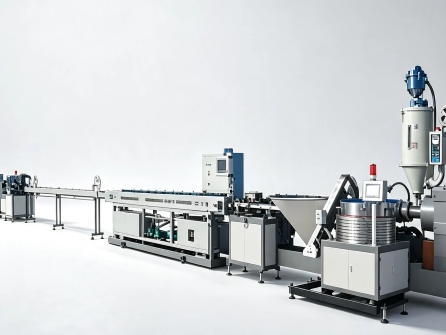

A round emitter drip irrigation pipe production line is a heavy-duty industrial system designed to manufacture cylindrical drip pipes. Unlike flat tape machines that produce a collapsed, flat profile, this line produces a product that remains round under pressure.
The key distinction lies in the emitter: instead of a flat, thin dripper, this machine handles cylindrical (round) drippers. These drippers typically feature a larger labyrinth path and filter inlets, offering superior anti-clogging performance and longer service life.
The process begins with a powerful single-screw extruder. To achieve the thicker walls required for pressure resistance, the extruder processes a blend of HDPE or high-grade LLDPE. The die head forms a round tube, not a flat one. Maintaining perfect roundness is critical, as any ovality will affect the subsequent dripper insertion accuracy.
The hot round tube enters a vacuum sizing tank. Unlike tape lines, pipe lines require longer cooling baths and stronger vacuum systems to maintain the circular profile against gravity and internal stresses. The pipe must be fully crystallized before the next stage to prevent deformation when the dripper is pressed into it.
This is the most sophisticated part of the line. Pre-molded cylindrical drippers are fed from vibratory hoppers. Robotic arms or high-speed wheels pick up individual drippers and orient them correctly.
The Mechanism: A pair of servo-driven pressing rollers grips the round pipe, creates a localized "pocket" in the semi-molten wall, inserts the dripper, and then fuses the outer skin back over it.
Precision: The spacing (e.g., 30cm, 50cm) is controlled by encoders linked to the line speed, ensuring accuracy within ±1mm.
After insertion, the pipe passes through another cooling zone. This ensures the plastic around the newly inserted dripper settles and bonds securely, locking the dripper in place permanently.
High-speed drills or lasers puncture the pipe wall at the dripper outlet. Given the thicker wall, more power is required for punching. An AI vision system verifies:
Correct dripper orientation.
Presence of each dripper.
Accurate hole placement.
Overall wall integrity.
Due to the pipe's thickness and tensile strength, a powerful caterpillar haul-off (track-based traction) is used instead of rubber belts. The pipe is then coiled onto large drums or cut into straight lengths, depending on customer requirements.
Component | Function | B2B Advantage |
Heavy-Duty Extruder | Melts high-grade PE for thick walls. | Ensures high burst pressure ratings (>0.4 MPa). |
Round Die Head | Forms a perfectly circular tube. | Critical for uniform wall thickness and dripper insertion. |
Cylindrical Dripper Inserter | Picks, orients, and inserts round drippers. | The heart of the machine; determines production speed and reliability. |
High-Power Cooling System | Solidifies thick-walled pipes effectively. | Prevents deformation and ensures dimensional stability. |
Caterpillar Haul-Off | Provides strong, slip-free traction. | Handles heavy pipes without damaging the surface. |
Products from this line offer distinct benefits:
High Pressure Resistance: Thick walls allow operation at pressures up to 0.4–1.0 MPa.
Superior Anti-Clogging: Larger filter inlets and flow paths in cylindrical drippers.
Mechanical Strength: Resistant to damage from farm machinery, animals, and UV rays.
Long Service Life: Designed for 5–10 years of use, often reusable across seasons.
Versatility: Suitable for above-ground, surface, and subsurface (SDI) installation.

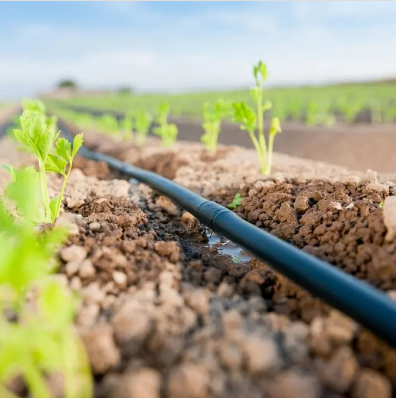

Round emitter pipes are the gold standard for high-value agriculture:
Orchards & Vineyards: Withstands years of use and exposure to sunlight.
Greenhouses: Ideal for high-pressure fertigation systems.
Subsurface Drip Irrigation (SDI): The robust construction prevents root intrusion and soil ingestion.
Turf & Landscaping: Used in golf courses and parks where durability is paramount.
Premium Market Position: Allows manufacturers to target high-end markets with higher profit margins.
Long-Term Contracts: Governments and large farms prefer durable pipes for infrastructure projects.
Brand Reputation: Selling a reliable, long-lasting product builds significant brand equity.
Export Opportunities: High demand in Europe, the Middle East, and North America for quality-assured piping.
The round emitter drip irrigation pipe production line represents the heavy-duty segment of irrigation manufacturing. By mastering the complexities of thick-wall extrusion and precise cylindrical dripper insertion, manufacturers can produce a product that delivers unmatched durability and performance.
If your business strategy focuses on quality, longevity, and high-pressure applications, investing in a line from a proven drip irrigation pipe machine manufacturer is essential for capturing the premium market segment.
