In the spectrum of water-saving irrigation, micro spray tape occupies a unique niche. Unlike drip tape, which delivers water drop-by-drop through discrete emitters, micro spray tape releases water through thousands of tiny pores or laser-drilled holes along its length, creating a gentle fan-shaped spray. It bridges the gap between drip irrigation and sprinkler systems—ideal for germination, greenhouse cooling, and leafy vegetable irrigation.
For B2B buyers—irrigation equipment factories, nursery suppliers, and agricultural distributors—understanding how a micro spray tape machine transforms raw plastic into a finished porous tape is essential for evaluating production costs, output quality, and market potential. At Yushen Irrigation, our micro spray tape lines are engineered for high-speed extrusion and micron-accurate online punching. This guide walks through every stage of the process.

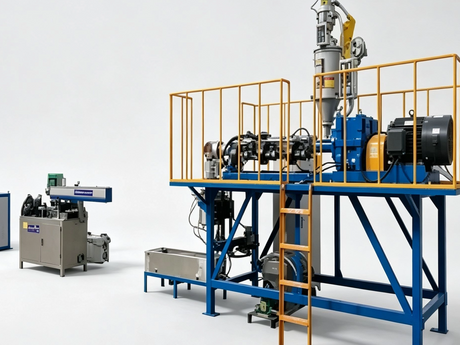

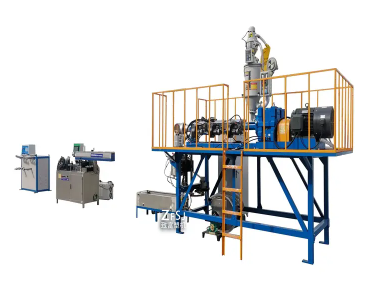

A micro spray tape machine (also called a porous irrigation tape extrusion line) is a continuous manufacturing system that produces thin-wall PE/LLDPE tape with evenly distributed micro-holes. The tape typically ranges from 25mm to 100mm in width and 0.1–0.3mm in wall thickness. Instead of embedding emitters, the machine relies on high-density perforations to create a uniform spray pattern when water pressure is applied.
The core challenge of this machine is not dripper insertion—it is precision punching at high speed without tearing the thin film.
The process begins with LLDPE or LDPE granules, often blended with UV stabilizers, anti-aging agents, and a controlled percentage of recycled material. A gravimetric feeder ensures recipe consistency, which directly affects the tape's flexibility and resistance to environmental stress cracking.
The blended material enters a single-screw extruder. The melt temperature is carefully controlled (typically 160–200°C) to maintain optimal fluidity. The die head forms a flat, thin-walled tube—wider and thinner than a standard drip tape profile.
The hot tube enters a vacuum calibration tank. Negative pressure ensures the tape maintains its flat shape and precise width. A multi-stage water cooling system then solidifies the structure. Because micro spray tape is wider than drip tape, the cooling bath must be sufficiently long to prevent thermal deformation.
This is the defining operation of the entire line. Unlike drip tape machines that punch one hole per dripper, the micro spray tape machine must create hundreds of micro-holes per meter in a continuous pattern.
Punching Technology: High-speed servo punches or laser drilling systems are used. Laser drilling is increasingly preferred because it creates clean, burr-free holes without mechanical stress on the thin film.
Hole Patterns: The machine can be programmed to produce different hole configurations—single-sided, double-sided, or alternating patterns—depending on the target application.
Synchronization: The punching system is electronically linked to the line speed encoder, ensuring hole spacing accuracy regardless of production speed (which can reach 200–300 m/min).
An inline vision system scans the punched tape for:
Missing holes
Partially punched (incomplete) holes
Tears or film defects around holes
Width and thickness deviations
Defective sections are flagged or automatically cut out.
A servo haul-off pulls the tape at constant tension. The dual-station automatic winder measures, cuts, and swaps rolls (typically 100m, 200m, or 500m per roll). The finished micro spray tape is then ready for packaging and shipment.
Component | Function | B2B Advantage |
High-Output Extruder | Melts and homogenizes PE blend for wide, thin tape. | Supports high line speeds with consistent melt quality. |
Wide Flat Die Head | Forms the broad, thin-walled profile. | Determines width uniformity and wall thickness tolerance. |
Vacuum Calibration Tank | Locks tape width and flatness. | Prevents edge curl and dimensional drift during punching. |
Laser / Servo Punching Unit | Creates micro-holes at high density. | The core differentiator; laser systems offer burr-free holes with zero tool wear. |
AI Vision Inspection | Verifies hole quality in real time. | Reduces scrap rate and ensures uniform spray performance. |
Automatic Winder | Collects finished tape into retail-ready rolls. | Enables one-operator production, lowering labor costs. |
Feature | Description | Market Value |
Gentle Spray Pattern | Fan-shaped mist from micro-holes. | Ideal for seed germination, nursery beds, and delicate crops. |
Large Wetting Area | Covers a wider soil surface than drip tape. | Reduces the number of laterals needed per bed. |
Anti-Blocking Design | Laser-drilled holes have smooth edges; some designs feature self-cleaning pores. | Lowers maintenance for end-users. |
Thin & Lightweight | Typically 0.1–0.2mm wall thickness. | Easy to deploy, retrieve, and recycle. |
Low Operating Pressure | Functions effectively at 0.2–0.5 bar. | Reduces energy costs for pumping. |
Nurseries & Greenhouses: The gentle spray is perfect for seedlings, flower beds, and potted plants without causing soil erosion or plant damage.
Vegetable Germination: Creates a uniformly moist seedbed for crops like lettuce, cabbage, and onions.
Greenhouse Cooling: When used without crops, the fine mist helps lower ambient temperature.
Lawn & Landscape: Suitable for turf irrigation in parks and residential gardens.
Mushroom Cultivation: The high humidity environment required by mushrooms is easily maintained with micro spray tape.
Diversified Product Portfolio: Adding micro spray tape allows irrigation factories to serve customers who need both drip and spray solutions.
High Retail Turnover: Micro spray tape is a consumable with high replacement frequency—ideal for building recurring revenue.
Lower Entry Barrier: Compared to inline dripper machines, micro spray lines are simpler mechanically and require less capital investment.
Growing Market Demand: Urban horticulture, protected agriculture, and landscape irrigation are expanding globally, driving demand for porous tape.
Private Label Potential: The product is easy to brand and package for retail distribution.
A micro spray tape machine is a specialized extrusion and punching system that transforms simple plastic film into a high-efficiency irrigation product. While it shares the extrusion foundation of drip tape lines, its differentiator lies in the online punching technology—where speed, precision, and hole quality determine the final spray performance.
For irrigation equipment manufacturers looking to expand into the fast-growing micro-irrigation retail and horticulture sectors, investing in a reliable line from an experienced micro spray tape machine manufacturer is a strategic move that opens new revenue streams.
