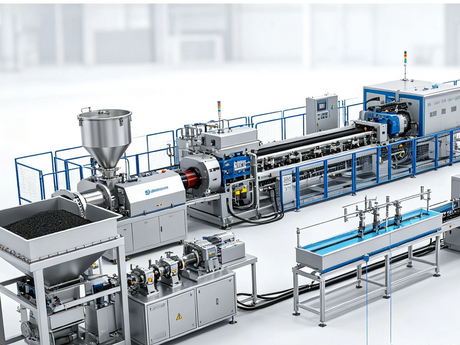

Many B2B buyers start their procurement journey with a simple question: “I want to make drip tape—what do I actually need to buy?” The trap is that most suppliers quote only the extruder and winder. A real factory, however, is a system. At Yushen Irrigation , a turnkey drip irrigation production line means everything from raw plastic to palletized finished rolls—installed, commissioned, and trainable for your local team.
Every turnkey line starts with the process backbone:
Single-screw extruder (SJ-65 / SJ-75 / SJ-90 depending on product)
Flat / round / labyrinth die head matched to your emitter strategy
Vacuum calibration tank (flat tape or round pipe version)
Primary + secondary cooling baths
Emitter feeding & insertion station (flat or round) OR labyrinth blade die (labyrinth line)
Servo / laser punching unit
AI vision inspection tunnel
Servo haul-off
Dual-station automatic winder (or planetary cutter + coiler for pipe)

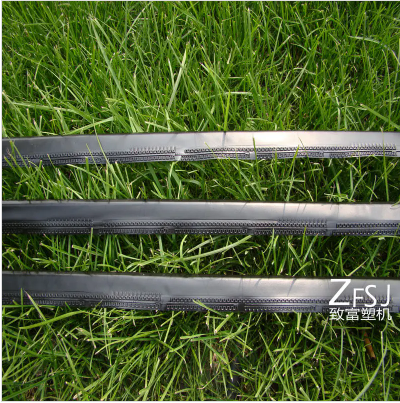

Yushen Irrigation builds these as one synchronized line: change the mid-section and the same platform becomes flat emitter, single-blade labyrinth, or round dripper pipe.
A line without auxiliaries runs for two days and then fights you for the next five years.
A complete Yushen turnkey package includes:
Gravimetric blender / loss-in-weight mixer – virgin + recycled + masterbatch dosing
Vacuum loader – hands-free material transfer
Industrial water chiller – keeps calibration water at set temperature
Cooling tower (optional for multi-line plants)
Screw air compressor + refrigerated dryer – clean pneumatic air for punches, clamps, winders
Voltage stabilizer / isolation transformer – protects PLC and inverters on unstable grids
Roll packaging machine – shrink-wrap or woven bag
Laser/inkjet coder – batch, date, brand printing
Skipping the chiller or dryer is the #1 reason new factories cap real output 30% below nameplate speed.
The machine makes meters; the mold makes money.
Turnkey from Yushen Irrigation includes:
Flat dripper molds (64 / 128 / 256 / 512 cavities)
Round dripper molds (16 / 32 / 48 cavities, unscrewing or collapsible core)
Labyrinth blades (mirror-polished tool steel)
Die heads & mandrels (spare set included)
Punch needles / laser optics (spare kit)
Mold-flow report + CMM dimension certificate
Because we run an in-house mold shop (H13 / S136, EDM, CMM), the mold, the inserter, and the punch station are designed as one mechanical system—not three things that argue with each other.
Modern B2B buyers do not want “a button and a prayer.” They want traceability.
Yushen turnkey lines ship with:
PLC + HMI control cabinet (Siemens / Schneider / Omron)
Recipe management – save 50+ tape specs (diameter, wall, dripper spacing, flow rate)
Line-speed encoder sync – extruder, punch, haul-off, winder locked together
Alarm & fault log – downtime reasons recorded per shift
Optional MES / IoT module – remote monitoring, OEE dashboard, export to your ERP
This is what separates a “machine seller” from a drip tape machine manufacturer that understands factory economics.
A turnkey irrigation plant from Yushen includes a starter QC lab:
Equipment | Checks |
Ultrasonic thickness gauge | Wall uniformity ±0.02 mm |
Flow-rate bench | 0.8 / 1.2 / 1.6 / 2.0 L/h emitter verification |
Burst-pressure tester | Tape/pipe pressure rating validation |
Tensile tester | Longitudinal strength vs recycled-content ratio |
UV/thermal aging chamber | Masterbatch & stabilizer confirmation |
Sample rack & batch archive | Traceability to roll number |
Buyers using our lines for government tenders (India, Turkey, Kazakhstan, Kenya, Brazil) pass audits because the data exists before the auditor arrives.
Turnkey does not end at the machine border.
Yushen Irrigation provides:
Plant layout drawing (machine flow, material route, human lanes)
Utility load calculation (power kW, water m³/h, air m³/min)
Compressed-air piping scheme
Water recirculation & drainage plan
Crane / forklift / mold-change cart specification
Ventilation & dust-extraction advice for grinding/reclaim area
Commissioning schedule (install → dry run → qualified tape → operator exam)
We do not fly in, bolt a machine, and leave. We hand over a running factory.
A complete package always contains the non-steel items:
Operator training – extrusion, insertion, punch sync, winding
Maintenance training – screw removal, die cleaning, mold polishing, sensor calibration
Spare parts kit (12-month consumables: seals, blades, needles, sensors, belts)
Remote support – video diagnosis + VPN HMI access
On-site engineer – 7–21 days commissioning depending on line count
Annual preventive-maintenance contract (optional)
For OEM/private-label buyers, we also supply neutral manuals, blank nameplate templates, and co-branded documentation.
Turnkey can scale with your ambition:
PE pipe extrusion line (16–200 mm HDPE main/sub-main)
Micro spray tape line
Drip fitting injection molding machine (stakes, connectors, end caps)
Masterbatch / recycled-flake washing line
Automated warehouse & roll-labeling robot
Solar-powered version for off-grid agro zones
Many Yushen customers start with one flat-emitter line, then add labyrinth + PE pipe + fittings molding within 18 months—because the auxiliary backbone is already paid for.
To be honest and B2B-credible, a turnkey scope must state limits:
Building civil works (concrete, walls, roof)
Diesel generator (unless specified)
Import duty, VAT, local transport
Raw material stock (LLDPE, masterbatch, recycled flake)
End-user irrigation design at farmer level
Local labor recruitment
Yushen Irrigation quotes these clearly so there are no “surprise invoices” after shipment.
A complete turnkey drip irrigation production line is not “an extruder plus a winder.” It is a coordinated system of main machines + auxiliaries + molds + controls + QC + infrastructure + training. Buyers who understand this avoid the classic mistake: saving 8% on the quote and losing 40% of output for three years.
At Yushen Irrigation, turnkey means you receive a factory that makes saleable, audit-ready drip tape on day 30—not a metal puzzle you debug for six months.
If your goal is to enter the irrigation market with bankable capacity, partner with a drip tape machine manufacturer that ships the whole system, not just the shiny parts.
