Which Drip Tape Machine Should You Buy: Flat Emitter, Labyrinth, Or Round Dripper Line?

Choosing a drip tape production line is not a one-size-fits-all decision. The three most requested configurations in the global irrigation machinery market—inline flat emitter lines, single-blade labyrinth lines, and round (cylindrical) dripper pipe lines—look similar from a distance because they all extrude thin-wall polyethylene and put water out at low pressure. Under the hood, however, they differ in emitter technology, machine architecture, finished-tape performance, and the type of customer each finished product serves.

At Yushen Irrigation, we manufacture all three families and ship them to more than 50 countries. This article is the side-by-side comparison we give to B2B buyers before they commit capital—so they can match the machine to their target market instead of buying a spec sheet they do not need.

1. The Three Emitter Philosophies in One Paragraph

• Flat emitter line​ molds a flat plastic chip (≈30 mm × 10 mm × 1.5–2.5 mm) with a labyrinth on one face, then inserts it inline into the still-warm tape. Highest flow uniformity, supports pressure-compensating (PC) versions, fastest line speed.

• Single-blade labyrinth line​ does not insert anything. It extrudes the tape with a metal labyrinth blade inside the die, so the flow path is formed inside the tube wall as one continuous piece. Cheapest machine, lowest running cost, but no PC option and weaker anti-clogging.

• Round dripper line​ injects a 3D cylindrical dripper into a thicker-wall pipe (0.6–1.2 mm). Slower, more expensive, but built for multi-season orchard and SDI use at higher pressure.

Everything else is detail on top of these three truths.

2. Process Architecture: Insertion vs In-Die Formation

The flat emitter line is the most automated and the fastest, but also the most unforgiving: a misfeed of one dripper stops the line. The labyrinth line has the fewest moving parts—often the most reliable in low-skilled-labor environments. The round dripper line is mechanically heavier (caterpillar haul-off, stronger cooling) because it is really a pipe line wearing a dripper-insertion badge.

3. Finished Product Performance

Flow uniformity (Christiansen CU)

Flat emitter tape leads: CU typically > 90% even with PC membranes across 0.5–3.5 bar. Round dripper pipe is close behind (CU 88–92%) thanks to larger filter area. Single-blade labyrinth trails at CU 80–88% and degrades faster in dirty water.

Anti-clogging

Round dripper > flat emitter > labyrinth. The cylindrical body gives the largest dual-inlet filter; the flat chip gives a machined labyrinth with smooth EDM walls; the extruded labyrinth is shallow, with dead corners where silt settles.

Pressure range

• Labyrinth tape: 0.4–1.0 bar, collapses above 1.2 bar

• Flat emitter tape: 0.5–3.5 bar (PC versions hold ±5% flow)

• Round dripper pipe: 0.5–4.0 bar, burst > 6 bar

Service life

Labyrinth: 1 season (sometimes 2 with thick wall 0.3 mm+). Flat emitter: 2–5 seasons. Round dripper pipe: 5–10 years, reusable, survives mechanized retrieval.

Wall thickness & recyclability

Labyrinth and flat tapes share the same thin-wall PE stream (easy to recycle together). Round pipe is a separate HDPE/LLDPE heavy-wall stream.

4. Machine Investment & Operating Cost

A labyrinth line can pay back fastest for a startup serving cotton, maize, or vegetable rows in emerging markets. A flat emitter line wins when the buyer sells to greenhouses, export distributors, or government tenders that specify CU ≥ 90%. A round dripper line is a strategic bet on orchards, vineyards, and subsurface drip irrigation (SDI) where the margin per meter is 3–5× thin-wall tape.

5. Crop & Market Fit

• Flat emitter tape​ → Greenhouse vegetables, strawberries, onions, flower nurseries, pressure-compensated systems, EU/Middle East retail brands.

• Single-blade labyrinth tape​ → Cotton, sugarcane, field maize, sunflower, low-budget row crops, African and Central Asian smallholders.

• Round dripper pipe​ → Apple/pear orchards, vineyards, walnuts, almonds, tree nurseries, golf-course subsurface, long-life SDI projects.

Yushen Irrigation routinely sees buyers from Turkey and Iran take flat emitter lines for greenhouse exports, buyers from Kazakhstan and Sudan take labyrinth lines for cotton, and buyers from Greece, Chile, and California take round dripper lines for permanent crops.

6. Common Buying Mistakes

1. Chasing top line speed without a dripper supply plan.​ A 400 m/min flat emitter line is worthless if your dripper mold cavitation is 64 and you need 800-cavity output to feed it.

2. Assuming labyrinth is “good enough” for PC markets.​ It is not—no membrane, no compensation.

3. Buying a round dripper line to make cheap field tape.​ Wrong economics; the machine cost cannot be amortized on single-season product.

4. Ignoring climate in auxiliary sizing.​ Flat emitter lines at 400 m/min need a serious industrial chiller; many first-time buyers undersize it and cap real speed at 250 m/min.

5. Separating mold choice from machine choice.​ The flat dripper mold IS part of the production line. At Yushen we supply both from one drawing set, so cavity count, gate location, and insertion notch match the inserter mechanically.

7. How Yushen Irrigation Builds All Three

Our plant runs the same extruder platform across all three lines and swaps the mid-section:

• Flat emitter line: SJ-75 single-screw extruder → vacuum calibration → flat dripper sorting & insertion station (infrared + servo, ±0.5 mm)​ → servo punch → dual-station winder. PLC: Siemens/Schneider, HMI recipe storage, AI hole inspection.

• Labyrinth line: Same extruder → die with hardened labyrinth blade​ → vacuum tank → punch → winder. Fewer sensors, fewer jams.

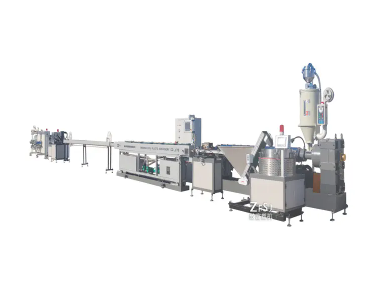

• Round dripper line: Heavier SJ-90 extruder → round die → vacuum sizing → cylindrical dripper inserter with fusion rollers​ → longer spray bath → caterpillar haul-off → planetary cutter or coiler.

Because we also run our own in-house drip mold shop​ (H13/S136, EDM, CMM, mold-flow analysis), a buyer taking a flat emitter line from Yushen gets matched 128- or 256-cavity molds, not a generic mold that fights the inserter.

8. Decision Shortcut

Ask three questions:

1. Who buys my tape?​ Retail greenhouse brand → flat emitter. Government row-crop tender → either flat or labyrinth depending on CU spec. Orchard owner → round dripper pipe.

2. What is my water quality?​ Filtered municipal → any. Open canal / well with sand → round dripper or flat emitter, never labyrinth for multi-season.

3. What is my re-investment horizon?​ < 2 years payback → labyrinth. 3–5 years → flat emitter. 5+ years and permanent crops → round dripper.

9. Conclusion

Flat emitter, labyrinth, and round dripper lines are not competitors—they are three tiers of the same value ladder. The labyrinth line is the volume entry ticket. The flat emitter line is the quality-and-uniformity workhorse for modern protected agriculture. The round dripper line is the infrastructure play for decades-long irrigation assets.

For an irrigation equipment factory, the right answer is often more than one: many Yushen customers start with a labyrinth line for cash flow, add a flat emitter line for greenhouse exports, and later add a round dripper line to bid on orchard SDI projects. Because all three share the same extrusion philosophy, the learning curve from one to the next is measured in days, not months.
