If you are sourcing drip irrigation products for resale, government tenders, or your own farm, you will constantly meet three words: flat emitter drip tape. It is one of the most misunderstood yet most profitable products in the irrigation market—because buyers confuse it with labyrinth tape, round dripper pipe, and online dripper hose.
At Yushen Irrigation, we manufacture both the flat emitter drip tape production line and the finished tape. This article explains, in plain B2B language, what the product really is, how it works, what specs matter, and where it earns the most money.

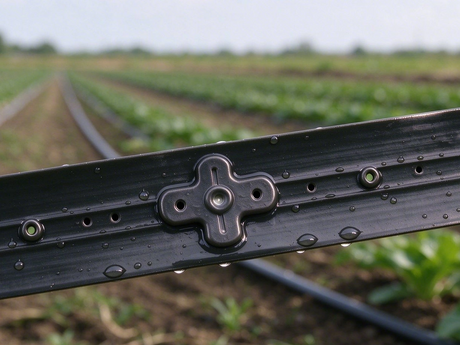

Flat emitter drip tape is a thin-wall polyethylene tube with pre-inserted flat plastic drippers welded to the inner wall during production. Each flat dripper carries its own labyrinth flow path, inlet filter window, and outlet hole. Water enters the tape from the main line, passes through the labyrinth, and drips out at a controlled rate near the plant root zone.
Unlike labyrinth tape—where the flow channel is molded into the tube wall—flat emitter tape uses discrete, factory-installed emitters. That single difference changes uniformity, anti-clogging behavior, price point, and market positioning.
Typical specs:
Diameter: 12 / 16 / 18 / 20 mm
Wall thickness: 0.15 / 0.20 / 0.30 / 0.40 / 0.60 / 0.80 mm
Emitter spacing: 100 / 150 / 200 / 300 / 500 / 1000 mm
Flow rate: 0.8 / 1.0 / 1.2 / 1.6 / 2.0 / 2.7 / 3.0 L/h
Working pressure: ~0.5–1.2 bar for standard types; PC versions handle wider ranges
Roll length: 500 / 1000 / 1500 / 2000 m per roll
1. Filtered water arrives from the sub-main.
2. Water fills the tape and reaches the flat emitter inlet window.
3. The inlet filter screens out suspended solids.
4. Water travels through the turbulent labyrinth, which stabilizes flow.
5. Water exits through the laser- or needle-punched outlet hole.
6. Moisture infiltrates the root zone—no runoff, no canopy wetting.
In pressure-compensating (PC) flat emitter tape, the dripper adds a flexible silicone membrane. When pressure rises, the membrane narrows the flow path; when pressure drops, it opens. Result: nearly constant flow from the first meter to the last meter, even on slopes or long laterals.
Feature | Flat Emitter Tape | Labyrinth Tape |
Emitter type | Discrete flat chip, factory inserted | Channel molded in wall |
Flow uniformity | High (CU often >90%) | Moderate (80–88%) |
Anti-clogging | Good—self-filter window | Depends on water quality |
Pressure compensation | Available (PC models) | Quasi-PC only |
Custom spacing | Easy (100–1000 mm) | Limited by die design |
Cost per meter | Mid | Low |
Best use | Greenhouse, orchard, export veg | Cotton, maize, single-season field |
Flat emitter tape is the “precision tier” between cheap seasonal tape and heavy-wall cylindrical dripline.

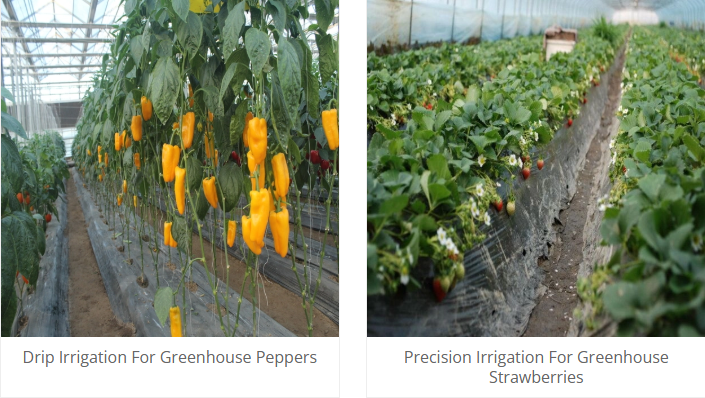

Tomatoes, peppers, cucumbers, strawberries, lettuce, eggplant.
Closed environment → less UV damage
Multi-season use → medium wall (0.30–0.40 mm) pays back
Custom spacing matches bed layout
Fertigation-ready: fertilizer goes straight to roots
Citrus, apple, mango, grape, pomegranate.
Young orchards: 0.40–0.60 mm flat emitter tape
Sloped land: PC flat emitter or cylindrical PC pipe
Controls weed growth by keeping row middles dry
Improves fruit size uniformity and sugar content
Watermelon, melon, tobacco, Chinese herbal medicine, potatoes, onions.
0.20–0.30 mm wall for one–two seasons
200–300 mm emitter spacing common
Reduces disease by keeping foliage dry
Container plants, flower nurseries, rose, tulip, carnation.
Flexible spacing for different pot sizes
Low flow prevents overwatering
Retrievable and reusable in protected areas
Heavy-wall flat emitter tape (0.60–0.80 mm) can be buried 10–15 cm.
No UV degradation
No annual retrieval labor
Ideal for sugarcane, banana, maize, permanent row crops
Sports turf, roadside landscaping, World Bank / government protected-agriculture packages.
Tenders often specify CU ≥ 90%
Flat emitter tape passes audits better than cheap labyrinth tape
This is the part most distributors miss:
0.15–0.20 mm → seasonal, low-cost, high-volume field crops
0.25–0.30 mm → 2-season vegetable / greenhouse rental
0.40–0.60 mm → orchard, nursery, export project
0.60–0.80 mm → subsurface, retrieval, multi-year use
A factory that only makes 0.15 mm tape competes on price. A factory with flat emitter molds for 0.20 / 0.30 / 0.60 mm serves greenhouses, government tenders, and orchards—three much higher-margin markets.
Flat emitter tape has smaller flow paths than cylindrical drippers. That means:
Screen/disc filter required
120–200 mesh depending on water source
Flush lines before first run
Poor water + no filter = clogged emitters + angry customers
Yushen Irrigation always tells buyers: the tape is only as good as the head filter.
Buyers often ask: “Should I buy flat emitter tape or cylindrical PC pipe?”
Rule of thumb:
Flat ground, beds, greenhouses, 1–3 season use → flat emitter tape
Slopes >5%, orchards 10+ years, mechanized harvesting → cylindrical PC pipe
Budget-sensitive field crops → labyrinth tape
Export greenhouse / audit-driven tender → flat emitter tape (often PC)
We do not only sell tape. We build the flat emitter drip tape production line:
SJ-75 extruder + flat dripper sorting/insertion station
64 / 128 / 256-cavity flat dripper molds (in-house)
Servo punching, AI hole inspection, dual-station winder
Chiller + mixer + air system packaged as turnkey plant
So whether you want to buy finished tape or make your own brand, Yushen Irrigation covers both sides of the transaction. That is why distributors, EPCs, and OEM buyers treat us as a drip tape machine manufacturer first and a product supplier second.
Before ordering flat emitter tape, confirm:
1. Diameter & wall thickness for your crop lifespan
2. Emitter spacing matched to plant spacing
3. Flow rate matched to soil infiltration (sandy = lower flow)
4. PC or non-PC based on terrain
5. Mesh size of recommended filter
6. Roll length & palletization for your logistics
7. Batch traceability & flow-rate test report
8. Whether supplier also makes the machine (better technical support)
Flat emitter drip irrigation tape is the precision workhorse of modern protected agriculture: factory-inserted flat drippers, turbulent labyrinth flow, optional pressure compensation, and customizable spacing for everything from strawberries to sugarcane.
It is not the cheapest tape, and it is not the heaviest pipe. It sits in the sweet spot: better uniformity than labyrinth, lower cost than cylindrical PC pipe, and far easier to specify for greenhouse and high-value crop projects.
If your market includes greenhouses, orchards, nurseries, government tenders, or export vegetables, flat emitter tape should be a core SKU—and your supplier should understand both the product and the machine behind it.
