How Labyrinth Drip Tape Controls Water Flow Without Separate Emitters?

Most buyers understand drip irrigation by thinking of a dripper as a small plastic part: sorted, oriented, inserted, welded. That is how flat-emitter tape and cylindrical-dripper pipe work. But labyrinth drip tape breaks that mental model.

A single-blade labyrinth line does not​ insert anything.

The flow path is born inside the tube wall during extrusion. Water is controlled by geometry, not by a discrete emitter chip. At Yushen Irrigation​, we build flat-emitter lines, round-dripper lines, and single-blade labyrinth lines—so this article explains, without marketing fluff, how a tape with “no separate emitters” still delivers meter-after-meter of controlled, low-rate discharge.

1. The Core Idea: The Wall Itself Is the Emitter

In flat-emitter tape, the emitter is a molded component.

In labyrinth tape, the “emitter” is a continuous serpentine channel pressed or cast into the tape wall—often on one side, which is why Chinese suppliers call it single-wing labyrinth.There is no loose part, no inserter, no vision-orientation station, no dripper hopper.

The machine uses a labyrinth blade / shaping wheel​ inside or just after the die. As molten polyethylene leaves the die, the blade imprints turns, teeth, expansions, and contractions into the inner wall. When the tape cools and collapses, those impressions become the flow regulator.

So the answer to the title question is short:

Labyrinth drip tape controls flow because the restriction is molded into the product itself.

2. Laminar Flow vs Turbulent Flow

To see why the shape matters, compare two pipes.

A straight smooth tube → water moves mostly laminar. Pressure drops gradually, velocity profile is predictable, and small pressure changes translate fairly directly into flow changes.

A labyrinth channel → sharp angles, baffles, dead pockets, expanding chambers, and narrow throats. Water is forced to turn, decelerate, accelerate, collide, and recirculate. That is turbulent flow.

Turbulence is usually “bad” in plumbing because it wastes energy. In drip irrigation, it is the whole point.

The labyrinth is intentionally designed to dissipate energy. Local head loss inside the tortuous path consumes pressure energy that would otherwise push more water out of the outlet. When pressure along the lateral rises or falls a little, much of that change is “absorbed” by maintaining vortices and frictional losses—rather than by accelerating the discharge.

Result: flow becomes less sensitive to pressure, even though there is no diaphragm or spring.

3. Quasi Pressure Compensation, Not True PC

Buyers often ask: “Is labyrinth tape pressure compensating?”

Correct answer:

• True PC: each emitter has a flexible silicone membrane that opens/closes the path.

• Labyrinth tape: achieves quasi or passive pressure compensation through head loss.

Within a limited operating window—commonly around 0.55–1.03 bar for many products—labyrinth tape gives acceptable uniformity. Christiansen uniformity for standard labyrinth tape is often quoted at 80–88%, while flat-emitter and cylindrical PC products reach higher numbers.

That is why labyrinth tape is brilliant on:

• flat row-crop fields

• cotton, maize, soybeans, watermelon, melon

• surface irrigation with short-to-medium lateral runs

And weaker on:

• steep slopes

• very long laterals

• projects where the tender demands CU ≥ 90%

If terrain varies a lot, you do not specify labyrinth tape. You specify PC flat-emitter tape or cylindrical PC pipe.

4. The Self-Flushing Trick

A second reason labyrinth tape works without separate emitters is clog resistance.

Because the channel is continuous and relatively wide compared with the narrow passages inside a precision flat dripper, turbulent flow keeps particles suspended. Sand grains, silt, and small organic debris do not get a calm corner to settle in—the vortices carry them toward the outlet and flush them through.

This is why labyrinth tape is often recommended for:

• pond or river water with seasonal turbidity

• well water with fine sand

• farms where filtration is “good enough” but not laboratory-grade

Flat-emitter tape fights clogging with a filter window at every dripper. Labyrinth tape fights clogging with channel hydraulics: fewer bottlenecks, wider path, constant scrubbing motion.

Neither removes the need for system filtration. But the failure modes are different.

5. Anatomy of a Labyrinth Flow Path

A well-designed labyrinth path usually contains:

1. Inlet throat​ – takes water from the tape lumen into the wall channel.

2. Expansion chamber​ – drops velocity, creates recirculation.

3. Baffles / teeth​ – force direction changes, generate vortices.

4. Narrow neck​ – creates controlled restriction and local pressure loss.

5. Backwater corners​ – create low-velocity pockets that, if well angled, also produce shear layers and secondary flow.

6. Outlet slit​ – releases water to the soil at 0.8–2.0 L/h typical rates.

Advanced designs add hexagonal branches, opposing inlets, or expanding chambers that widen under pressure to expel particles.

The art of labyrinth design is not “make it twisty.” The art is:

• enough restriction to hit target flow

• enough turbulence to stay uniform

• enough openness to resist clogging

• enough repeatability to hold specs across millions of meters

6. Why the Machine Is Simpler

From a factory-owner perspective, labyrinth tape is beautiful because the production line has fewer things to break.

That is why Yushen Irrigation tells low-labor-cost markets:

If you sell cotton and maize farmers 0.15–0.30 mm tape at aggressive prices, a single-blade labyrinth line is often the most bankable machine.

Line speed is usually 120–250 m/min, below flat-emitter lines (200–450 m/min) but with fewer stoppages from misfeed.

7. Specifications Buyers Should Read

When a supplier says “labyrinth drip tape,” do not stop there. Ask for:

• Diameter: 12 / 16 / 20 mm

• Wall: 0.15 / 0.18 / 0.20 / 0.25 / 0.30 mm

• Emitter spacing: 100 / 200 / 300 / 400 mm

• Flow rate: 0.6 / 0.8 / 1.0 / 1.2 / 1.6 L/h

• Pressure range: e.g. 0.4–1.0 bar

• Flow-pressure exponent: how much flow changes when pressure doubles

• CU / DU: field uniformity data, not just catalog claims

• Labyrinth image: CAD cross-section, not a blurry photo

• Filtration recommendation: 120–150 mesh typical for moderate water

A good supplier can show you the actual labyrinth geometry. A weak supplier says “our tape is high quality” and changes the topic.

8. Where Labyrinth Tape Wins

Use labyrinth drip tape when:

• Crop is row crop / broad-acre / single or double season

• Field is reasonably flat

• Budget is tight and price per meter decides the tender

• Water has mild sediment load

• You want simple machinery, low maintenance, fast ROI

• Target markets: cotton, corn, wheat rotations, watermelon, chili, onion, potato, sugarcane

Avoid labyrinth tape when:

• Slope >3–5%

• Laterals must run very long

• Audit requires PC-class uniformity

• Water is full of organic slime and filtration is poor

• Crop is high-value greenhouse export where traceability matters more than price

9. Common Misconceptions

“No emitter means no technology.”​

Wrong. The technology moved from the molded chip into the die and shaping wheel. Tooling quality decides everything.

“Labyrinth tape clogs easily.”​

Not necessarily. Wide continuous turbulent paths often clog less than narrow precision emitters in dirty water—though they lack a built-in filter window.

“Labyrinth = low quality.”​

Also wrong. It is a different optimization: cost, simplicity, sediment tolerance. Flat-emitter tape is a different optimization: uniformity, PC option, audit compliance.

“Any labyrinth blade works.”​

No. Blade steel, cooling, collapse timing, and wheel accuracy decide whether you get 82% or 87% uniformity and whether the outlet holes line up every time.

10. How Yushen Irrigation Builds the Advantage In

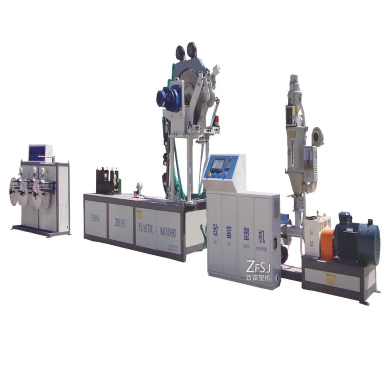

Yushen Irrigation manufactures single-blade labyrinth drip irrigation tape making machines with:

• SJ-series extruder tuned for LLDPE/PE blends

• mirror-polished labyrinth blade / shaping wheel (Sweden or equivalent tool steel)

• vacuum calibration + multi-stage cooling

• mechanical or servo outlet punching aligned to the molded path

• PLC/HMI control, metering, tension-controlled winder

• optional chiller, mixer, air system, and QC bench for turnkey plants

Because we make both​ the machine and the tape know-how, buyers get more than a steel line. They get the hydraulic philosophy: what wall thickness, what blade geometry, what spacing, what pressure class fits which crop.

That is the difference between a drip tape machine manufacturer​ and a trader with a PDF catalog.

11. Bottom Line

Labyrinth drip tape controls water flow without separate emitters because:

1. The restriction is molded into the wall.

2. Sharp turns create turbulence.

3. Turbulence dissipates pressure energy.

4. Head loss stabilizes discharge across small pressure changes.

5. Continuous wide-ish path flushes particles.

6. No loose emitter = fewer machine parts = lower cost per meter.

It is not “inferior flat-emitter tape.” It is a deliberately simpler, cheaper, sediment-friendly architecture for massive row-crop irrigation.

If your business is volume, flat land, and competitive tenders, labyrinth tape is not the budget compromise—it is the correct engineering choice.

And if you want to make it, buy the line from a supplier who can explain the hydraulics, not just bolt a blade into a die.
