In the high-stakes world of agricultural manufacturing, terminology can often overlap, causing confusion for B2B buyers. One such term is the "Melt Flow Drip Irrigation Tape Machine." While some use it interchangeably with "Internal Strip" technology, in the context of modern production lines—particularly those offered by leading Chinese manufacturers like Yushen Irrigation—it refers to a specific, highly advanced method of creating drip tape without inserting individual drippers.

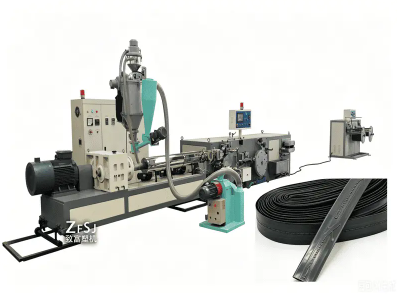

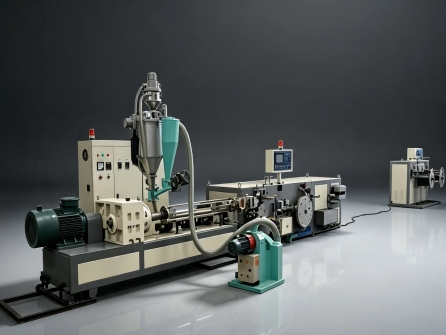

So, what exactly is it? A melt flow machine is a sophisticated co-extrusion system that forms a continuous, seamless flow path inside the drip tape during the extrusion process. It is the engine behind the vast majority of affordable, high-volume drip tape used in global row cropping. This article will define the technology, walk through its unique process, highlight its commercial benefits, and explain why it is a cornerstone investment for irrigation factories.
At its core, a melt flow drip irrigation tape machine utilizes dual-extrusion technology. Unlike "inline" machines that insert pre-molded hard plastic drippers, the melt flow machine uses two extruders feeding into one complex die head:
The Primary Extruder: Melts and pumps the bulk material (usually LLDPE mixed with recycled content) that forms the body of the tape.
The Secondary (Strip) Extruder: Melts and pumps a specialized polymer formulation that forms the internal "melt flow" channel (the emitter).
These two molten streams merge in the die. The result is a single, unified product where the emitter is not attached to the tape—it is formed within the tape structure itself.
The process begins with precise material handling. The tape body typically uses cost-effective blends with high recycled content. The internal strip uses a higher-grade polymer selected for its ability to hold a precise shape during extrusion and resist degradation over multiple seasons.
This is where the "melt flow" occurs. Inside the specialized die head, the melt from the strip extruder is forced through a precisely engineered mandrel. This mandrel shapes the flowing polymer into a tortuous, labyrinth-like path. Simultaneously, the main melt flow surrounds it, sandwiching the strip between the inner and outer walls of the flat tape. No glues, no welding—just pure polymer fusion.
Immediately upon exiting the die, the flat tube enters a vacuum calibration tank. The negative pressure ensures the tape stays flat and, critically, keeps the internal melt flow strip centered and pressed firmly against the inner wall. This prevents the channel from collapsing before it solidifies.
The tape travels through a multi-stage cooling bath. The cooling rate is carefully controlled to ensure the polymer molecules "freeze" in the correct orientation, locking in the dimensions of the labyrinth channels and ensuring the bond between the strip and the tape wall is permanent.
High-speed needles or lasers puncture the outer wall of the tape. Because the internal strip is continuous, the machine's control system synchronizes the punching with the line speed to ensure every hole intersects the hidden flow path beneath.
Finally, a servo-driven haul-off pulls the tape at speeds often exceeding 400 meters per minute. A dual-station automatic winder collects the finished product into neatly packaged rolls, ready for shipment.
Why do savvy irrigation factory owners invest in melt flow technology?
Advantage | Technical Explanation | Business Impact |
Maximum Speed | Eliminates the mechanical bottleneck of picking and placing individual drippers. | Highest output per hour; lowers the cost per meter. |
Structural Integrity | The emitter is molecularly bonded to the tape; there are no joints or seams. | Zero risk of dripper detachment; superior burst strength. |
Material Efficiency | Optimized die design minimizes the amount of polymer needed for the emitter strip. | Significant savings on raw material costs, especially with volatile resin prices. |
Operational Simplicity | Fewer moving parts (no vibratory bowls, no complex insertion cams). | Lower maintenance costs and easier operator training. |
Consistent Quality | Computer-controlled process ensures every meter of tape has identical hydraulic properties. | Builds a reputation for reliability in the market. |
Characteristics:
Melt flow tape is characterized by its thin walls (typically 0.15–0.3mm), lightweight nature, and the presence of a continuous, welded-in emitter strip. It is often perceived as the "workhorse" of the drip irrigation world.
Applications:
Row Crops: The primary application for cotton, corn, soybeans, wheat, and sugarcane.
Vegetables: Ideal for potatoes, onions, and carrots, especially in regions with adequate filtration.
Budget-Conscious Projects: Perfect for government subsidies, NGO projects, and large-scale land development where initial cost is a major factor.
Feature | Melt Flow Machine | Flat Emitter Machine | Labyrinth Machine |
Emitter Type | Continuous Internal Strip | Individual Inserted Drippers | Molded in Wall |
Production Speed | Very High (400m/min+) | High (350m/min+) | High (300m/min+) |
Anti-Clog Ability | Excellent | Superior | Good |
Cost per Meter | Low | Medium-High | Lowest |
Best For | High-volume row crops | High-value horticulture | Short-cycle vegetables |
As a professional drip irrigation tape machine manufacturer, YuShen IrrigPro has refined the melt flow process over decades. Our machines feature:
Advanced Die Head Design: Ensuring uniform wall thickness and perfect strip centering.
Robust Dual-Extrusion System: Capable of handling high percentages of recycled materials without sacrificing quality.
Full Automation: From gravimetric dosing to automatic winding, reducing labor dependency.
Global Support: Proven installations in over 50 countries with comprehensive after-sales service.
A melt flow drip irrigation tape machine is not just a piece of equipment; it is a strategic asset for any company targeting the mass agricultural market. By leveraging the power of co-extrusion, it delivers a product that balances performance, durability, and cost-effectiveness.
If your business goal is to produce reliable, affordable drip tape at scale, understanding and investing in melt flow technology is essential. Partner with an experienced drip irrigation tape machine manufacturer to ensure your production line is optimized for profitability and longevity.
