In the global push for water-use efficiency, the drip irrigation tape production line stands as the backbone of modern agricultural manufacturing. Unlike simple plastic extruders, this is a fully synchronized industrial ecosystem that converts raw polymers into precision irrigation tape at speeds exceeding 400 meters per minute. For irrigation factories, OEM distributors, and agribusiness investors, understanding how these lines work is the first step toward maximizing ROI.
At Yushen Irrigation, we specialize in delivering turnkey solutions that integrate Mechanical Equipment and Drip Components. This article breaks down the working principles of our core machines—from the Flat Dripper Irrigation Tape Machine to the Round Dripper Irrigation Pipe Machine—and explains why selecting the right drip irrigation tape machine manufacturer defines your long-term success.
A drip irrigation tape production line is a continuous, automated system designed to manufacture thin-walled LDPE or LLDPE tapes embedded with flow-regulating emitters. The primary goal is to produce a product that delivers water uniformly at low pressures (0.8–1.5 bar), minimizing evaporation and runoff.
YuShen’s product range covers virtually every mainstream technology:
Flat Dripper Irrigation Tape Machine: For high-clog-resistance tape.
Round Dripper Irrigation Pipe Machine: For high-pressure, heavy-duty applications.
Melt Flow Drip Irrigation Tape Machine: For cost-effective, high-volume output.
Single Blade Labyrinth Drip Irrigation Tape Machine: For simplified, robust production.
PE Pipe Extrusion Line: For mainlines and sub-mainlines.
Supporting Drip Components: Including T-Tape, Micro Spray Tape, and Cylindrical Pipes.
Each line is engineered to transform raw material into finished, market-ready reels with minimal human intervention.
The process starts with Linear Low-Density Polyethylene (LLDPE). To ensure consistency, virgin resin is mixed with recycled material, UV stabilizers (HALS), and carbon black using a gravimetric dosing system. This guarantees that the melt index remains stable throughout the production run—critical for maintaining wall thickness tolerances of ±0.02mm.
The blended material enters a high-torque single-screw extruder (L/D ratio ~30:1). Segmented temperature control zones heat the polymer to 140–180°C. The molten plastic is then forced through a specialized die head.
For Flat Dripper lines, the die creates a thin, flat profile.
For Round Dripper lines, a circular cross-section is formed.
For Melt Flow lines, the die incorporates a continuous emitter strip channel.
Immediately after exiting the die, the hot tube enters a vacuum calibration tank. Under negative pressure (−0.06 to −0.08 MPa), the tube is pulled against sizing sleeves to lock in its outer diameter (OD). This prevents ovality and prepares the surface for dripper insertion. The tape is then cooled in a water bath to retain its shape.
This is where the "intelligence" of the tape is added. Pre-molded drippers—stored in vibratory hoppers—are oriented and fed into the tape via a high-speed insertion mechanism.
Flat Dripper Machines use a dual-feeder system to insert flat emitters into the inner wall.
Round Dripper Machines utilize precision rollers to embed cylindrical drippers.
Labyrinth Machines skip this step, as the flow path is molded directly into the wall during extrusion.
Advanced lines operate at 350–450 meters per minute, with insertion accuracy within ±0.1mm.
After insertion, the tape passes through a lamination zone where the outer layer fuses over the dripper, sealing it permanently without adhesives. A secondary cooling tank further solidifies the bond, ensuring the dripper remains stationary even under high pressure.
Using servo-driven punches or lasers, outlet holes are created precisely at the dripper’s exit window. An integrated AI vision system scans for:
Missing drippers
Misaligned holes
Wall thickness defects
Surface imperfections
Any defective section is automatically marked or rejected, ensuring only premium-grade tape reaches the winder.
A servo-controlled caterpillar haul-off maintains constant tension and line speed. The finished tape is then transferred to a dual-station automatic winder. This unit measures the length (e.g., 500m or 1000m), cuts the tape, swaps the core, and unloads the finished roll—all without stopping the line. This allows a single operator to manage the entire process.
As a full-spectrum supplier, YuShen doesn't just sell machines; we provide integrated manufacturing ecosystems. Our Mechanical Equipment division includes:

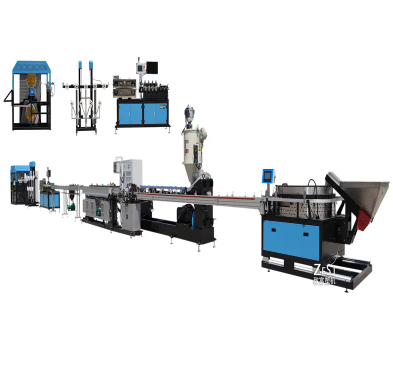

Ideal for horticulture and high-value crops. These machines produce tape with superior clog resistance due to the large, deep labyrinth channels of the flat dripper.

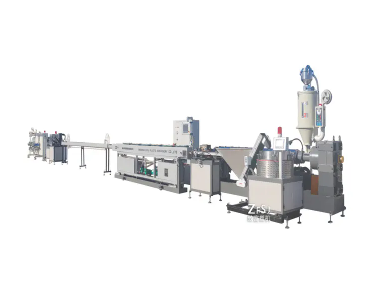

Designed for durability. These lines produce thicker-walled pipes suitable for mechanized laying and retrieval, commonly used in row crops like cotton and corn.

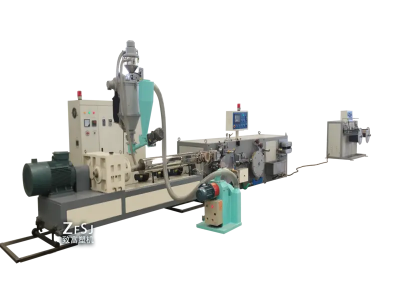

Focused on efficiency. By integrating the emitter flow path into the extrusion process, these machines reduce component handling and increase output for budget-conscious markets.
Known for simplicity. With fewer moving parts and no separate dripper insertion, these lines offer high reliability and lower maintenance costs.
Complementing our tape machines, these lines produce the HDPE mains and sub-mains required for a complete irrigation network.
We maintain an independent R&D center for Molds. Owning the mold technology allows us to customize dripper flow rates (0.8L/h to 2.2L/h) and geometries to match specific soil and crop conditions.
Beyond the machinery, successful B2B operations require a robust supply of Drip Components. YuShen supports clients with:
Flat Dripper Tape: Our flagship product, known for longevity.
T-Tape: The industry-standard configuration for many international markets.
Micro Spray Tape: Perfect for nurseries, greenhouses, and cooling applications.
Round / Cylindrical Pipe: Heavy-duty solutions for subsurface drip irrigation (SDI).
By offering both the means of production (machines) and the end products (components), we enable our partners to act as one-stop irrigation solution providers.
Investing in a complete line from a specialized drip irrigation tape machine manufacturer offers distinct advantages:
Economies of Scale: High-speed lines (450 m/min) drastically reduce the cost per meter.
Labor Efficiency: Automation reduces staffing needs from 6–8 workers to just 1–2 per shift.
Quality Consistency: Closed-loop control systems minimize scrap rates (<1%).
Market Adaptability: Quick-change tooling allows manufacturers to switch between flat, round, and labyrinth products based on seasonal demand.
Localized Production: Establishing local manufacturing in regions like Africa, Southeast Asia, or South America eliminates import tariffs and shipping delays.
When evaluating a production line, B2B buyers should consider:
Throughput Requirements: Do you need entry-level (120 m/min) or high-output (450 m/min)?
Product Mix: Will you produce flat tape, round pipe, or both?
Raw Material Flexibility: Can the extruder handle high percentages of recycled content?
Technical Support: Does the supplier offer on-site installation, training, and readily available spare parts?
YuShen addresses these concerns with 40 patents, ISO/CE certifications, and a global service network capable of supporting installations in over 50 countries.
A drip irrigation tape production line is a sophisticated convergence of polymer science, mechanical engineering, and digital automation. Whether you choose a Flat Dripper, Round Dripper, Melt Flow, or Labyrinth system, the underlying principle remains the same: precision manufacturing leads to precision irrigation.
For businesses aiming to lead in the water-saving agriculture sector, partnering with a technically proficient drip irrigation tape machine manufacturer is not just a purchase—it is a strategic investment in future growth.
