In the diverse world of agricultural irrigation manufacturing, the single blade labyrinth drip tape machine holds a unique position. Often referred to simply as a "labyrinth machine," it is the epitome of mechanical simplicity combined with high-volume output. Unlike flat emitter or internal strip machines that rely on inserting or co-extruding separate components, the labyrinth machine creates the water-saving device—the maze-like flow path—directly within the wall of the tape during a single extrusion pass.
For B2B buyers focused on emerging markets, vegetable farming, or disposable irrigation solutions, understanding this technology is vital. At Yushen Irrigation, our single blade labyrinth lines are renowned for their robustness, ease of maintenance, and exceptionally low production costs. This article breaks down the elegant physics of its operation and highlights why it remains a staple for irrigation factories worldwide.
The fundamental principle of a single blade labyrinth machine is integral extrusion. There are no pre-molded drippers, no vibrating feeders, and no insertion mechanisms. Instead, the magic happens entirely within the extrusion die head.

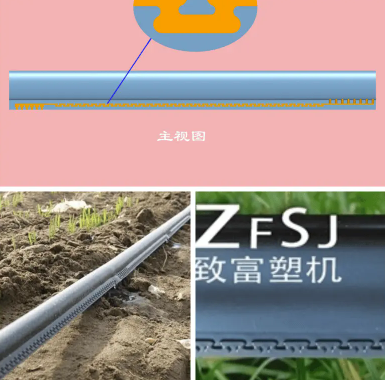

Inside the die, a fixed "blade" (or core pin) interrupts the flow of molten plastic. This blade is precision-machined with a negative image of the labyrinth flow path. As the LLDPE melt flows around this blade, it forms the outer wall of the tape while simultaneously creating the internal tortuous path. When the tape exits the die and cools, the area where the blade was present becomes the open channel, and the contours of the blade become the walls of the labyrinth.
This "all-in-one" approach means the emitter is not attached to the tape; it is the tape.
The workflow of a single blade labyrinth machine is streamlined, focusing on speed and efficiency.
LLDPE granules, often mixed with a high percentage of recycled flakes, are fed into a single-screw extruder. The material is heated to a precise temperature (usually 180–220°C) to ensure optimal fluidity.
The molten plastic is pushed through the annular gap of the die. The single blade (mandrel) positioned in the center forces the melt to split and rejoin. The unique geometry of this blade creates the turbulent flow path on the inner side of the tape wall.
The hot, semi-molten tube enters a vacuum calibration sleeve. Negative pressure ensures the tape retains its flat shape and that the freshly formed labyrinth channels do not collapse before solidifying.
The tape passes through a water cooling tank. Rapid cooling "freezes" the geometry of the labyrinth, locking in the dimensions required for consistent water flow.
A rotating punching wheel creates the inlet holes at regular intervals. Unlike machines that must align holes with specific drippers, the labyrinth machine aligns holes with the continuous channel. Precision timing ensures the holes intersect the flow path correctly.
Finally, the tape is pulled by a tractor unit and wound onto rolls by an automatic winder. Due to the mechanical simplicity, these lines are highly reliable and can run for extended periods with minimal supervision.
Component | Function | B2B Advantage |
Specialized Die Head | Contains the "single blade" that forms the labyrinth. | The most critical part; determines flow uniformity and product quality. Easy to swap for different flow rates. |
High-Efficiency Extruder | Melts and homogenizes the plastic. | Designed to handle high loads of recycled material, lowering raw material costs. |
Cooling Bath | Solidifies the tape structure. | Longer baths ensure complete crystallization, improving tape strength. |
Perforation Unit | Creates water inlet holes. | Simple mechanical design ensures high reliability and low maintenance. |
Automatic Winder | Collects finished tape. | Handles high line speeds efficiently, reducing labor costs. |
Products manufactured on a single blade labyrinth machine possess distinct features:
Monolithic Structure: Since the emitter and the tape are one piece, there is zero risk of the emitter detaching or clogging due to adhesive failure.
Thin Wall Design: Typically produced with wall thicknesses of 0.15mm to 0.3mm, making it lightweight and easy to deploy.
Cost-Effectiveness: Minimal material usage combined with high-speed production results in the lowest cost-per-meter in the drip irrigation industry.
Flexibility: The tape remains highly flexible, allowing it to conform to uneven terrain.
Ease of Recycling: Being a single-polymer product (100% PE), it is highly recyclable at the end of its useful life.
The single blade labyrinth tape is the go-to choice for specific market segments:
Vegetable Farming: Ideal for short-cycle crops like tomatoes, peppers, and melons where the tape is laid and retrieved frequently.
Seasonal Row Crops: Widely used in sugarcane, cotton, and peanuts, particularly in regions with shorter growing seasons.
Greenhouse Cultivation: Popular in poly-houses due to its low cost and ease of layout.
Smallholder Farms: The affordability of this tape makes modern irrigation accessible to farmers with limited capital.
From a business perspective, the single blade labyrinth machine offers compelling advantages:
Low Capital Expenditure (CapEx): Significantly cheaper to purchase than inline emitter machines.
Low Operating Costs: Fewer moving parts mean lower energy consumption and reduced maintenance expenses.
High Output: Capable of running at high speeds (300+ m/min), generating massive volumes quickly.
Rapid ROI: The combination of low machine cost and high-volume output ensures a very fast return on investment.
Market Adaptability: Perfect for producing entry-level products for price-sensitive markets.
The single blade labyrinth drip tape machine is a testament to the idea that sophisticated results can come from simple mechanisms. By leveraging the principle of integral extrusion, it produces a functional, reliable, and incredibly affordable irrigation product.
For irrigation factories targeting high-volume, disposable, or budget-conscious markets, this machine is not just an option—it is the foundation of a profitable business model. If your strategy involves scaling production quickly while maintaining cost leadership, partnering with an experienced drip irrigation tape machine manufacturer to acquire a labyrinth line is a strategic necessity.
