In the drip irrigation manufacturing industry, the production line gets most of the attention—but behind every high-quality drip emitter, micro-spray fitting, or pressure-compensating device is a plastic injection mold​ that makes it all possible. For B2B buyers evaluating a drip irrigation tape machine manufacturer, the mold capability of the supplier is often the most overlooked yet most critical factor.

At Yushen Irrigation, we don't just build machines—we design and manufacture our own plastic injection molds for drippers and irrigation fittings​ in-house. This vertical integration ensures that every flat dripper, round dripper, and labyrinth component meets micron-level tolerances. This guide explains what these molds are, how they work, and why they are the hidden foundation of irrigation manufacturing.

1. What Are Plastic Injection Molds for Drippers and Fittings?

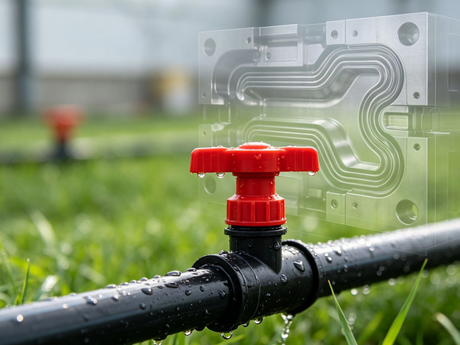

A plastic injection mold​ is a precision metal tool (typically made from hardened steel or aluminum alloy) with a cavity shaped like the final plastic part. Molten plastic is injected into this cavity under high pressure. After cooling, the mold opens and ejects the finished part.

In irrigation manufacturing, these molds produce:

• Flat drippers​ (for inline flat emitter tape)

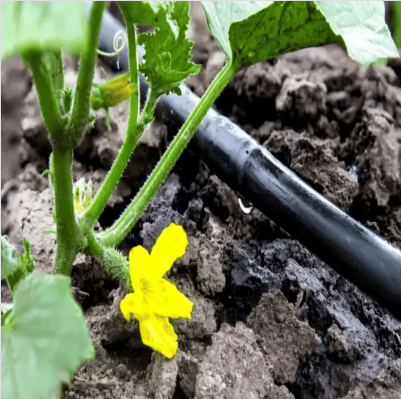

• Round/cylindrical drippers​ (for heavy-duty drip pipe)



• Labyrinth flow paths​ (for single-blade machines)

• Micro spray tape fittings​ (connectors, end caps, valves)

• Pressure-compensating diaphragms​ (for PC emitters)

• Irrigation accessories​ (stakes, holders, couplings)

2. The Injection Molding Process: Step by Step

Step 1: Mold Clamping

The two halves of the mold (fixed half and moving half) are clamped together under high tonnage (50–300 tons depending on part size). This creates a sealed cavity.

Step 2: Plastic Injection

Molten thermoplastic (typically PP, PE, or specialized engineering plastics) is injected into the mold cavity at high pressure (800–1500 bar). The material fills every micro-detail of the cavity—including the tortuous labyrinth channels of a dripper.

Step 3: Cooling & Solidification

Cooling channels inside the mold circulate water or oil to rapidly cool the plastic. This step determines the cycle time. For small drippers, cooling may take only 3–8 seconds.

Step 4: Mold Opening & Ejection

The mold opens. Ejector pins push the solidified part out of the cavity. For complex geometries like drippers with deep, narrow labyrinths, specialized ejection systems (stripper plates, unscrewing mechanisms) are required to prevent damage.

Step 5: Part Removal & Recycling

The part is removed by robotic arm or manual operator. Any sprue or runner waste is ground and recycled back into the injection machine hopper.

3. Key Design Considerations for Dripper Molds

4. Types of Irrigation Molds

Flat Dripper Molds

• Cavity count: 16–64 cavities

• Precision requirement: Extremely high—labyrinth depth tolerance ±0.02mm

• Ejection: Slide cores for undercuts; stripper plate for clean release

• Material: Hardened steel (H13, S136) for long life (5–10 million shots)

Round Dripper Molds

• Cavity count: 8–32 cavities

• Challenge: The cylindrical shape requires unscrewing mechanisms or collapsible cores

• Application: High-pressure drip pipe (0.6–1.2mm wall)

Labyrinth Blade Molds

• Type: Not a traditional injection mold, but a precision-machined metal blade inserted into the extrusion die

• Function: Creates the internal flow path during extrusion

• Material: Tool steel with mirror-finish polishing

Fitting Molds (Connectors, Valves, End Caps)

• Cavity count: 2–16 cavities

• Thread requirements: Precision threads for threaded fittings

• Sealing surfaces: Must be flash-free to ensure leak-proof connections

5. Why In-House Mold Capability Matters for B2B Buyers

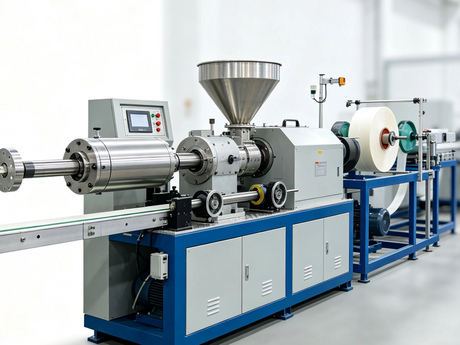

When sourcing a drip tape production line, many buyers focus only on the extruder, winder, and control system. However, the mold​ is equally important:

• Consistency: A worn or poorly designed mold produces drippers with inconsistent flow rates, leading to uneven irrigation in the field.

• Uptime: Drippers that warp or have flash will jam in the insertion machine, causing line stoppages. A precision mold prevents this.

• Customization: If you want to develop a proprietary dripper design (private label), your supplier must have in-house mold design capability.

• Spare Parts: When a mold cavity breaks, you need replacement parts fast. A manufacturer with in-house mold making can supply them within days, not months.

• Cost Control: Outsourcing molds adds markup. In-house production keeps costs down and quality high.

6. YuShen's Mold Manufacturing Capabilities

At YuShen IrrigPro, our mold division features:

• CNC Machining Centers: 5-axis machining for complex labyrinth geometries

• EDM (Electrical Discharge Machining): For ultra-fine channel details

• CMM (Coordinate Measuring Machine): Verifies cavity dimensions to micron accuracy

• Mold Flow Analysis: Simulates plastic flow before cutting steel, reducing trial-and-error

• Heat Treatment: Vacuum hardening for extended mold life

We produce molds for:

• Flat drippers (all flow rates: 0.8L/h, 1.2L/h, 1.6L/h, 2.0L/h, 2.5L/h)

• Round drippers (various pressure compensation ranges)

• Micro spray tape fittings

• PE pipe fittings

• Custom OEM designs

7. How to Evaluate a Mold Supplier

When assessing a potential irrigation mold manufacturer, ask these questions:

1. Do they have in-house mold design and machining, or do they outsource?

2. What steel grade do they use? (H13 and S136 are industry standards for long life)

3. What is the typical cavity count for dripper molds?

4. Do they provide mold flow analysis reports before production?

5. What is the expected mold life (number of shots)?

6. Can they produce custom designs based on your specifications?

8. Conclusion

Plastic injection molds for drippers and irrigation fittings​ are the unsung heroes of the irrigation industry. They determine whether a drip tape machine produces a premium product or a substandard one. For B2B buyers, choosing a supplier with proven in-house mold capability is not a luxury—it is a necessity for long-term success.

If you are planning to invest in a drip irrigation production line, make sure your supplier is also a capable irrigation mold manufacturer. At YuShen IrrigPro, we control the entire chain—from mold design to final tape—ensuring your investment delivers consistent, high-quality output for years to come.
