In the competitive landscape of agricultural irrigation, efficiency and cost-effectiveness are king. While flat emitter and round dripper machines dominate the high-end market, the internal strip drip tape machine reigns supreme in high-volume, cost-sensitive applications. Its defining characteristic is the ability to create a continuous, unbroken flow channel (or "strip") inside the tape during the extrusion process itself, eliminating the need for separate dripper insertion.
For B2B buyers looking to serve vast row-crop markets (cotton, corn, soybeans), understanding this technology is crucial. At Yushen Irrigation, our internal strip machines are engineered for maximum throughput and minimal waste. This guide explains the fascinating physics behind forming continuous flow channels and why this machine is a staple for high-volume irrigation factories.
Unlike inline machines that insert pre-molded parts, the internal strip machine utilizes a sophisticated co-extrusion process. Imagine squeezing toothpaste: the internal strip machine squeezes two different streams of molten plastic simultaneously through a single die. One stream forms the main body of the tape, while a second, specially formulated stream forms the internal flow channel (the emitter strip).
This strip, typically made of a higher melt strength polymer, bonds perfectly with the surrounding tape wall. Because the channel is formed continuously, there are no joints or seams, resulting in exceptional structural integrity.
The process uses two distinct material feeds:
Tape Body: Standard LLDPE mixed with recycled content.
Internal Strip: A specialized polymer blend designed to hold its shape during extrusion and maintain flexibility over time.
Both are fed into separate extruders but converge at a single, complex die head.
This is where the continuous flow channel is born. Inside the die head, the melt flow from the strip extruder is guided into a precisely shaped mandrel. As the main LLDPE flow surrounds it, the strip is "sandwiched" between the inner and outer layers of the tape. The die geometry forces the strip to form a tortuous, labyrinth-like path along the entire length of the tape.
Immediately after exiting the die, the flat tube enters the vacuum calibration tank. The negative pressure ensures the tape maintains its flat shape and, critically, ensures the internal strip remains centered and properly positioned against the inner wall. Without precise calibration, the flow channel could collapse or shift.
The tape passes through a multi-stage cooling bath. As the polymer cools, the internal strip bonds metallurgically (via polymer fusion) with the tape wall. This creates a monolithic structure where the emitter is essentially "born" as part of the tape, rather than attached to it.

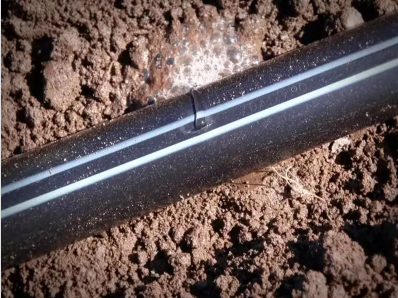

Once solidified, the tape moves to the punching station. High-speed needles or lasers pierce the outer wall precisely at points corresponding to the internal labyrinth. Because the strip is continuous, the holes connect the outside world to the endless flow path inside.

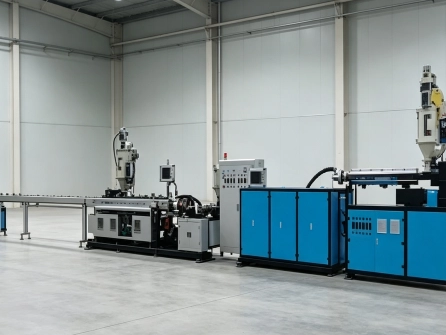

Similar to other lines, AI vision systems check for wall integrity and hole alignment. The tape is then pulled by a servo haul-off and wound onto rolls by an automatic winder. Speeds often exceed 400 meters per minute, making this one of the fastest methods of drip tape production.
Component | Specific Function | B2B Advantage |
Dual Extruder System | Feeds both tape body and internal strip materials. | Allows use of recycled content in the body while maintaining premium strip quality. |
Co-Extrusion Die Head | Merges two melt flows into a single flat tape with an internal channel. | The heart of the machine; determines flow uniformity and strip stability. |
Precision Mandrel | Shapes the internal strip into a labyrinth path inside the die. | Defines the hydraulic performance (flow rate) of the final tape. |
Vacuum Calibrator | Stabilizes the flat profile and centers the internal strip. | Essential for preventing channel collapse and ensuring consistent emitter spacing. |
High-Speed Punch | Creates outlet holes along the continuous strip. | Must be synchronized perfectly with line speed to hit the narrow strip accurately. |
Why do so many large-scale farms and distributors choose internal strip tape?
Unmatched Production Speed: Eliminating the dripper insertion step removes a major bottleneck. These lines are among the fastest in the industry.
Lower Material Costs: By using recycled polymers for the tape body and optimizing the strip size, manufacturers can achieve a very low cost-per-meter.
Simplicity and Reliability: Fewer moving parts (no vibratory bowls or insertion cams) mean less downtime and easier maintenance.
Excellent Clog Resistance: Modern strip designs feature wide entry points and turbulent flow paths that resist clogging from algae and small particles.
Perfect for Recycling: Since the entire tape is essentially one type of fused polymer (or easily separable layers), it is easier to recycle at the end of its life cycle compared to tapes with glued or mechanically locked inserts.
Internal strip drip tape is the workhorse of global agriculture:
Row Crops: Cotton, Corn, Soybeans, Wheat, and Sugarcane. These crops require miles of tape, where low cost is prioritized over extreme pressure compensation.
Vegetable Farming: Potatoes, Onions, and Carrots, particularly in regions with good water filtration.
Landscape and Reclamation: Large-scale land rehabilitation projects where budget constraints are tight.
For irrigation factories, the internal strip machine is a volume play.
High ROI: The combination of high speed, low material cost, and minimal labor results in a rapid return on investment.
Market Penetration: It allows manufacturers to compete aggressively in price-sensitive developing markets.
Operational Simplicity: Easier to train operators and technicians compared to complex inline insertion machines.
The internal strip drip tape machine represents a triumph of polymer engineering. By forming continuous flow channels through co-extrusion, it bypasses the mechanical complexity of dripper insertion to deliver a product that is fast to produce, affordable to buy, and effective in the field.
If your business strategy focuses on high-volume, cost-effective irrigation solutions for broad-acre farming, investing in this technology from a reputable drip irrigation tape machine manufacturer is a strategic imperative.
