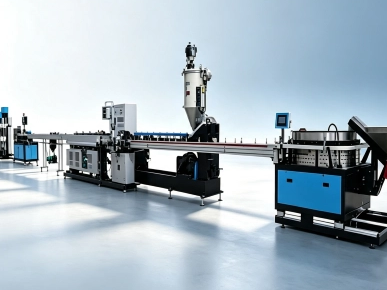

In the hierarchy of modern irrigation technology, the flat emitter drip irrigation tape machine sits at the pinnacle of precision manufacturing. Unlike labyrinth or melt-flow designs where the flow path is molded into the tape wall, this machine inserts a pre-molded, flat plastic emitter into the tape during extrusion. This process creates a larger, deeper flow path that offers superior resistance to clogging—a critical factor for growers using water sources with high particulate levels.
For B2B buyers—including irrigation equipment factories, large-scale farm cooperatives, and OEM distributors—understanding the mechanics of this machine is essential for producing high-value agricultural products. At Yushen Irrigation, our flat emitter lines are engineered for high-speed stability (up to 450 m/min) and micron-level accuracy. This guide breaks down the working process, the critical components involved, and the specific applications where flat emitter tape outperforms other types.
The production of flat emitter drip tape is a continuous, synchronized dance between polymer extrusion and mechanical assembly. Here is the step-by-step workflow:
The process begins with Linear Low-Density Polyethylene (LLDPE). To achieve the flexibility required for thin-wall tape (0.15–0.4mm), the raw material is blended with recycled content, UV stabilizers, and carbon black using a gravimetric dosing system. This ensures the melt flow index remains consistent, preventing fluctuations in wall thickness.
The blended material enters a single-screw extruder. Unlike standard pipe extrusion, the die head here forms a flat, rectangular tube rather than a round one. This "flat tube" is crucial because it provides the platform for the emitter to sit flush against the inner wall.
The hot, flat tube enters a vacuum calibration tank. Under negative pressure, the tube is pulled against sizing plates to lock in its width and thickness. This prevents the tube from collapsing and ensures the dimensions are perfect for the next critical stage: emitter insertion.
This is the defining step. Pre-injection-molded flat drippers are loaded into vibratory hoppers. They are oriented correctly (flow path facing out) and fed into the tape via a high-speed insertion mechanism.
Dual-Feeder System: YuShen machines utilize a dual-feeder buffer to ensure that if one hopper empties, the other maintains continuous production.
Servo Pressing: Servo motors press the dripper into the semi-molten inner wall of the tape, ensuring a permanent bond without adhesives.
After insertion, the tape passes through a lamination zone where the outer layers of the flat tube fuse over the dripper, encapsulating it completely. A secondary cooling bath solidifies this bond, ensuring the dripper cannot move or detach under pressure.
A high-speed servo punching system drills the outlet hole precisely at the dripper’s exit window. Simultaneously, an AI vision system scans for:
Missing drippers
Misaligned holes
Wall thickness defects
Any flawed section is automatically rejected, guaranteeing that only premium tape reaches the winder.
Finally, a dual-station winder measures the tape (e.g., 500m or 1000m), cuts it, swaps the core, and unloads the finished roll without stopping the line. This high degree of automation allows a single operator to manage the entire process.
To achieve the high tolerances required for flat emitter tape, several specialized components must work in harmony:
Component | Function | Technical Advantage |
Flat Film Die Head | Shapes the molten plastic into a flat profile. | Ensures uniform wall thickness across the tape width. |
Vacuum Calibration Tank | Stabilizes the tube geometry. | Prevents ovality and prepares the surface for insertion. |
Dual Dripper Feeder | Orients and supplies flat drippers. | Guarantees 99.9% insertion efficiency at high speeds. |
Servo Punching Unit | Creates the outlet hole. | Micron-level accuracy prevents damage to the dripper labyrinth. |
PLC + HMI Control | Manages line synchronization. | Allows recipe storage for different tape specs (spacing, flow rate). |
Automatic Winder | Collects finished product. | Reduces labor costs and ensures consistent roll tension. |

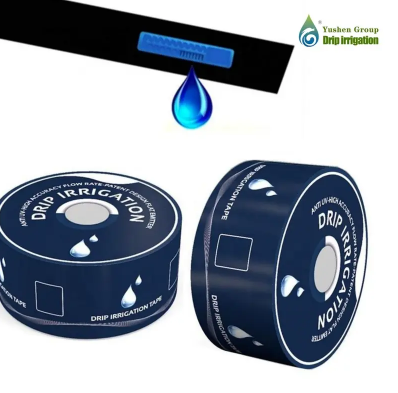

The unique design of flat emitter tape makes it the preferred choice for specific agricultural scenarios:
In greenhouses growing vegetables like tomatoes, cucumbers, and peppers, water quality can sometimes be challenging. The deep, wide labyrinth of a flat emitter provides excellent anti-clogging performance, ensuring uniform watering across long runs (up to 100m lateral length).
Perennial crops require reliable irrigation systems that last multiple seasons. Flat emitter tape produced on these machines is often thicker (0.3–0.4mm) and more durable, capable of withstanding the rigors of orchard management, including exposure to sunlight during trunk establishment.
For crops like potatoes or carrots, burying the tape is common. The robust seal created by the thermal bonding process prevents root intrusion and soil ingestion, making flat emitter tape ideal for SDI systems.
The ability to produce tape with very tight emitter spacing (e.g., 10cm or 15cm) on a flat emitter machine is critical for crops like onions, where uniform germination across the entire bed is necessary for high yields.
Investing in a flat emitter drip irrigation tape machine offers distinct market advantages:
Premium Pricing: Flat emitter tape commands a higher price point in the market due to its superior anti-clogging features.
Reduced Waste: The precision of the inline process results in scrap rates of less than 1%, protecting your margins.
Brand Reputation: Offering a reliable, high-performance product builds trust with distributors and end-users.
Export Potential: Flat emitter tape is the international standard for quality; producing it opens doors to export markets in Europe, the Middle East, and North America.
A flat emitter drip irrigation tape machine is more than just a piece of manufacturing equipment; it is a sophisticated system that combines polymer science with high-speed automation. By mastering the inline insertion process and utilizing components like servo punches and vacuum calibrators, manufacturers can produce a product that meets the stringent demands of modern agriculture.
If you are looking to upgrade your production capabilities or enter the high-end irrigation market, partnering with an experienced drip irrigation tape machine manufacturer is the logical next step.
