Customer Case Study: Flat-Emitter Drip Irrigation Tape Production Line Optimization in Morocco

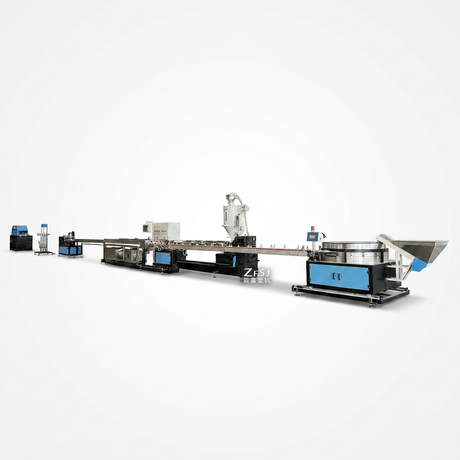

Project Overview

Project Name: Flat-Emitter Drip Irrigation Tape Production Line Optimization Project
Country: Morocco
Application: Agricultural water-saving irrigation product manufacturing / flat-emitter drip irrigation tape production

This project focused on the commissioning and maintenance optimization of a flat-emitter drip irrigation tape production line. The work addressed three key issues: excessive heat around the emitter guide rod, changes in tape diameter, and unstable emitter spacing. Beginning with a mechanical inspection, the project combined cooling control, vacuum sizing, emitter feeding, and control-parameter adjustments to establish a clear operating and troubleshooting sequence for the production team.

The scope covered the feeding path from emitter sorting to the forming position, the cooling arrangement beneath the guide rod, and the relationship between sizing hardware and process settings. Rather than applying settings copied from another line, technicians reviewed each production condition in sequence and observed the resulting tape condition. The same approach was incorporated into operator training so that routine maintenance, minor process correction, and mechanical fault inspection could be handled as separate but coordinated tasks.

Customer Background

The customer is a manufacturer supplying drip irrigation products to the local agricultural irrigation market. As the variety of drip tape orders increased, the production team needed to switch between different emitter spacings and finished-product requirements while keeping emitter feeding, tube formation, punching, and winding coordinated throughout continuous production.

During operation, the customer found that changing settings on the touchscreen alone could not fully resolve emitter-spacing fluctuations and tape-diameter changes. Some irregularities were related to the emitter feeding path, cooling conditions, and mechanical positioning. Without a systematic inspection sequence, operators could repeatedly adjust parameters without accurately identifying the source of the problem.

To improve commissioning and maintenance practices, the project focused on three critical areas: emitter guide-rod temperature control, tape-diameter adjustment, and emitter-spacing troubleshooting. Instead of applying universal settings without regard to equipment and material conditions, the solution established a clearer operating process through mechanical inspection, process adjustment, and finished-product observation.

Project Requirements and Production Challenges

1. Maintaining the Emitter Guide Rod Under High-Temperature Conditions

During flat-emitter drip tape production, emitters pass through sorting, storage, transfer, and feeding mechanisms before reaching the tube-forming position. The emitter guide rod passes through an area close to the extrusion die head, so its temperature gradually rises during continuous operation.

If the guide rod becomes too hot, emitters may soften inside the channel and, in severe cases, disrupt continuous feeding. Volatile waxy substances from the tube material and residues formed after material decomposition may also accumulate on high-temperature components. As these deposits build up and detach, they can cause pinhole defects in the drip tape and may even interrupt continuous tube formation.

The customer therefore needed more than basic guide-rod cooling. The cooling method had to match the production rate, emitter spacing, and workshop temperature, while allowing operators to regulate the flow of the cooling medium.

2. Diameter Deviations Could Not Be Solved by Repeated Temperature Changes Alone

After changing raw materials or production requirements, the customer needed to monitor changes in the finished tape diameter. The diameter of flat-emitter drip irrigation tape is influenced primarily by the inner diameter of the vacuum sizing sleeve. Vacuum level, water-ring flow, cooling-water temperature, and extrusion temperature can also affect the forming condition.

If the target specification does not match the sizing sleeve, process adjustments alone are unlikely to correct a substantial diameter deviation. Repeatedly raising or lowering the extrusion temperature may also affect emitter bonding and the surface condition of the tape. The project therefore needed to establish a clear boundary between hardware configuration and minor process correction, rather than treating every diameter issue as a temperature-setting problem.

3. Emitter-Spacing Fluctuations Required Systematic Troubleshooting

Emitters move from the sorting machine into the storage chute, then pass through the transfer plate and emitter guide rod before reaching the forming position. A step, misalignment, or excessive resistance at any connection can disturb the feeding rhythm. Burrs or dents on contact parts, as well as oil residue, plastic particles, or other foreign matter inside the channels, can also cause emitters to hesitate or jam.

The pressure between the emitter-feeding timing belt and the emitters, the relative position of the guide rod and pressure roller, and the position of the copper pressure plate can all affect emitter delivery. If these mechanical issues are not eliminated first, changing the emitter-feeding coefficient may alter the average spacing but will not correct spacing that varies unpredictably from one emitter to the next.

Solution

1. Improving Emitter Guide-Rod Cooling

The production line uses a copper tube beneath the emitter guide rod to supply compressed air or cooling water for controlled temperature management. The cooling medium is selected according to the production rate, emitter spacing, workshop temperature, and actual feeding condition rather than relying on one fixed method.

When the production rate is relatively high, emitter spacing is small, and the workshop temperature is low, compressed-air cooling may be used according to operating conditions. This helps control guide-rod temperature without overcooling the emitters inside the channel. When the production rate is lower, emitter spacing is larger, or the workshop temperature is higher and air cooling is insufficient, cooling water can provide stronger heat removal.

A flow-control valve is installed at the air or water inlet of the cooling tube, allowing operators to regulate the cooling-medium flow according to the feeding condition. Filtered, softened water is used for water cooling to reduce the risk of scale formation and blockage inside the narrow copper tube. Rather than applying a universal flow setting, operators assess whether emitters pass smoothly, whether material deposits appear around the guide rod, and whether the tape surface remains consistent.

2. Establishing a Diameter-Adjustment Sequence

The project began by checking whether the target product matched the vacuum sizing sleeve. When the raw-material formulation, target specification, or production process changed substantially, the sizing sleeve and related forming configuration were reviewed first. Process parameters were used for correction only when the diameter deviation was minor and the basic equipment configuration was appropriate.

On the corresponding equipment and under established process conditions, increasing the vacuum level or water-ring flow may cause the tape diameter to increase. Lowering the cooling-water temperature or extrusion temperature may produce a similar tendency. Reversing these adjustments may cause the diameter to decrease. Because these trends can be affected by machine design, raw materials, and actual operating conditions, the project did not treat them as fixed formulas applicable to every production line.

Operators changed parameters one at a time and in small increments. After each adjustment, they checked the tape diameter, emitter-to-tape bonding, surface condition, and signs of pinhole defects. The adjustment and resulting product condition were recorded so that the actual cause could be identified instead of being obscured by several simultaneous changes.

3. Troubleshooting Emitter Spacing Along the Mechanical Feeding Path

To address unstable emitter spacing, the project established an inspection sequence from the front end to the forming section. Operators checked the connections between the sorting machine and storage chute, the storage chute and transfer plate, and the transfer plate and emitter guide rod. Each transition was inspected for smoothness, visible steps, and misalignment.

All components that contact the emitters were then inspected for burrs and impact damage. Oil residue, plastic particles, and other foreign matter were removed from the sorting machine, storage chute, transfer plate, and guide-rod channels. During operation of the emitter-feeding timing belt, operators also checked whether the belt applied suitable pressure to the emitters, preventing following emitters from being blown into and striking those ahead of them.

The relative positions of the emitter guide rod, pressure roller, and copper pressure plate were corrected according to the assembly requirements of the specific machine. Millimeter-level values from other machines were not applied directly. Only after the mechanical feeding path was smooth, the channels were clean, and the pressure and assembly positions were correct was the touchscreen feeding coefficient adjusted to correct spacing that remained consistent but was uniformly too large or too small.

Project Implementation

Implementation began with a production-line condition inspection. Based on the emitters and raw materials used by the customer, technicians checked the guide-rod cooling tube, vacuum tank, water ring, emitter feeding path, timing-belt pressure, and control system. Observable problems were cleaned, corrected, or maintained before integrated trial operation began.

During cooling-system commissioning, operators observed emitter feeding under compressed-air and water-cooling conditions. The cooling method was selected according to workshop temperature and production rhythm, and the flow-control valve was adjusted while the feeding condition was monitored. When water cooling was used, water quality and copper-tube flow were also checked to prevent gradual blockage caused by scale or contamination.

Diameter adjustment followed a one-variable-at-a-time approach. Only one process condition was changed during each adjustment, and sufficient time was allowed for the line to stabilize before the diameter, bonding condition, and tape surface were checked. For emitter-spacing commissioning, the mechanical path was inspected first. The feeding coefficient was changed only after operators confirmed that there was no obvious jamming or interruption along the transfer path.

The project also included equipment operation and troubleshooting training for the production team. The training covered feeding-channel cleaning, cooling-medium selection, vacuum and water-ring adjustment, identification of emitter-spacing irregularities, and the correct inspection order for different problems. Through hands-on operation, the team developed a clearer understanding of the relationship between mechanical condition and parameter adjustment.

Project Results

Following production-line inspection and integrated commissioning, the customer established a standard troubleshooting approach for guide-rod temperature, tape-diameter changes, and emitter-spacing irregularities. When a production issue occurred, operators could first determine whether it originated from cooling, mechanical feeding, sizing configuration, or process parameters before taking corrective action.

Guide-rod cooling was no longer handled with one fixed method. The team selected air or water cooling according to the production rhythm, emitter spacing, and workshop temperature, then evaluated the result through controlled flow adjustment. When the tape diameter changed, the team checked the sizing sleeve and basic configuration before deciding whether minor process correction was appropriate. When emitter spacing fluctuated, the feeding path, cleanliness, and belt pressure were inspected before control parameters were changed.

No unverified production-speed, output, yield-rate, or cost figures were used for this project. The results were reflected in a clearer commissioning process, more targeted equipment maintenance, and a consistent troubleshooting sequence for common production issues.

Customer Value

Faster Fault Identification

By defining the correct sequence for guide-rod cooling checks, diameter adjustment, and emitter-spacing troubleshooting, operators can narrow the inspection range more efficiently and avoid repeatedly changing parameters before the cause is understood.

Better Protection of Continuous Production

Controlled guide-rod cooling, together with clean feeding and cooling channels, helps reduce the effect of emitter softening, material buildup, and pinhole defects on continuous tube formation.

A Repeatable Commissioning Method

The project combined mechanical inspection, process adjustment, and finished-product observation. Operators change one variable at a time and record conditions before and after each adjustment, providing a practical reference when raw materials or product requirements change.

Stronger Equipment Knowledge Within the Production Team

The customer team learned not only how to change touchscreen settings but also how the sorting machine, storage chute, transfer plate, emitter guide rod, vacuum sizing system, and cooling system work together. This knowledge provides a clearer foundation for routine maintenance and product-specification changes.

Project Summary

The Morocco flat-emitter drip irrigation tape production line optimization project addressed three key issues: temperature control for the emitter guide rod in a high-temperature area, minor drip tape diameter adjustment, and systematic troubleshooting of emitter-spacing fluctuations. Instead of reducing commissioning to a fixed set of parameters, the project established an inspection sequence based on equipment structure, raw materials, and actual production conditions.

The project showed that when a drip tape production line develops irregularities, operators should inspect the mechanical structure and feeding path first, then review cooling, vacuum sizing, and other process conditions, and only then adjust control parameters. Coordinating equipment configuration, operating methods, and maintenance procedures creates a more orderly basis for production-line operation.

Companies planning to purchase or optimize a flat-emitter drip irrigation tape production line can provide their target diameter, wall thickness, emitter type, emitter spacing, roll length, intended raw materials, and local electrical conditions. Reviewing the machine configuration, trial-production items, and acceptance requirements against this information is more reliable than applying settings from another production line directly.
